Specification

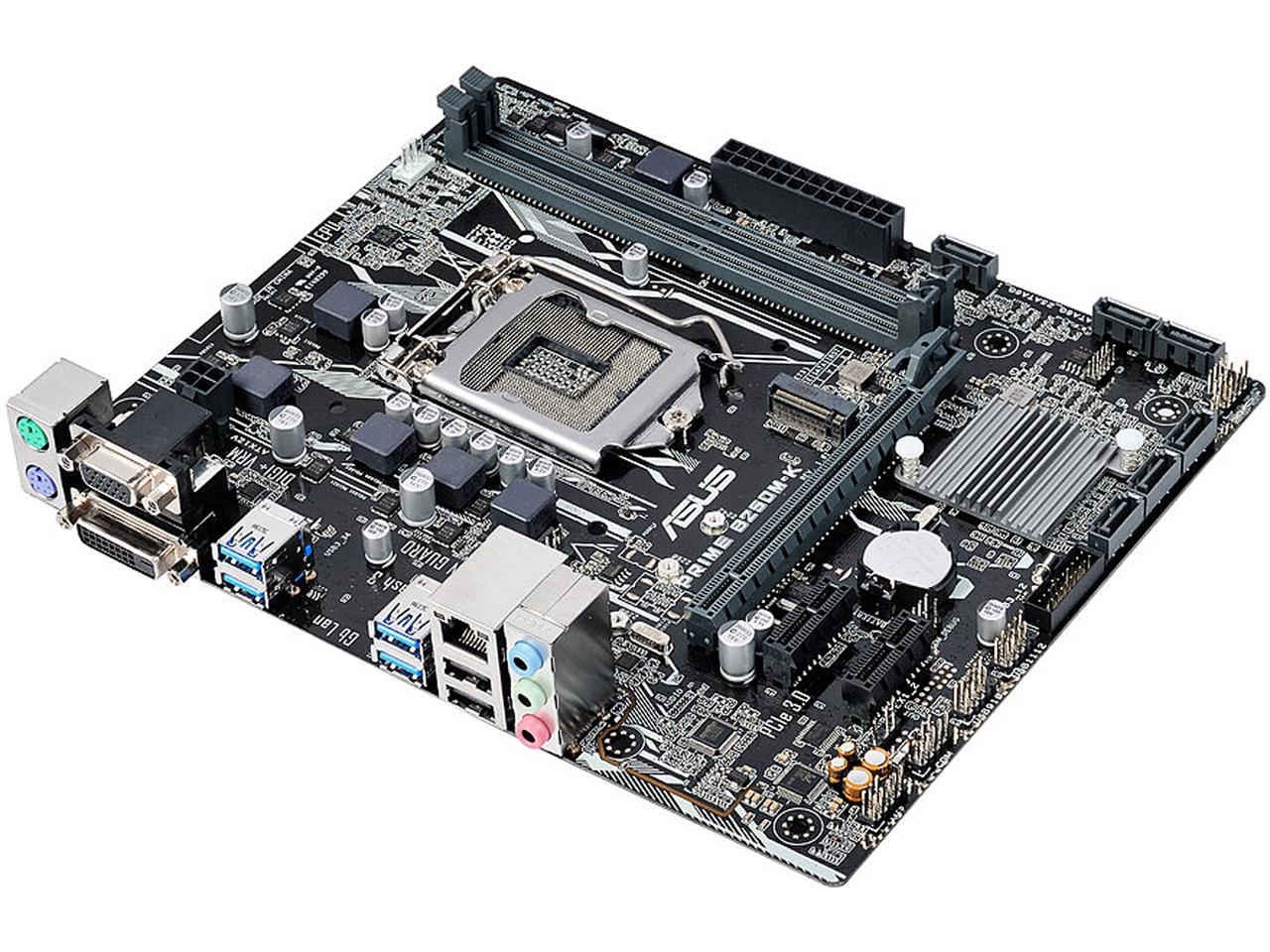

Asus Prime B250M-K Motherboard
5X Protection III: Multiple hardware safeguards for all-round protection
LED illumination: Lighting control audio trace paths
Native M.2: Lightning-fast storage speeds
UEFI BIOS and EZ Flash 3
Specifications:
CPU:
Build in Intel Socket 1151 for 7/6th Generation Core i7/5/3 Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
Chipset: Intel B250
Memory:
2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Graphic:
Integrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support:
DVI-D/RGB ports
Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Expansion Slots:
1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
2 x PCIe 3.0/2.0 x1
Storage:
Intel B250 Chipset:
1 x M.2 socket 3, with M Key, type 2242/2260/2280 storage devices support
6 x SATA 6Gb/s ports, gray
LAN:
Realtek RTL8111H, 1 x Gigabit LAN Controller
ASUS LAN Guard
Audio:
Realtek ALC887 8Channel HD Audio CODEC
Jack-detection, Front Panel Jack-retasking
USB Ports:
Intel B250 Chipset: 6 x USB 3.0/2.0 ports
Intel B250 Chipset: 6 x USB 2.0/1.1 ports
Back I/O Ports:
1 x PS/2 keyboard/mouse
1 x D-Sub
1 x DVI-D
1 x LAN (RJ45) port
4 x USB 3.0 Type-A
2 x USB 2.0
1 x 8-channel Audio I/O
Internal I/O Ports:
1 x USb 3.0 connector support additional 2 USB 3.0 ports
2 x USB 2.0 connectors supports additional 4 USB 2.0 ports
1 x COM port connector
6 x SATA 6Gb/s connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x S/PDIF out header
1 x 24-pin EATX Power connector
1 x 4-pin ATX 12V Power connector
1 x Front panel audio connector
1 x Clear CMOS jumper
1 x System panel connector
Operating System:
Windows 10 64-bit
Windows 8.1 64-bit
Windows 7 32-bit
Windows 7 64-bit
Accessories:
User's manual
I/O Shield
2x SATA 6Gbps cables
1x M.2 screws
1x Supporting DVD
BIOS: 128Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 QFan Control, F3 My Favourites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD memory information
Manageability: Wfm 2.0, DMI 3.0, WOL by PME, PXE
Form Factory: mATX Form Factor, 8.9x7.3" (22.6x18.5cm)
