Specification

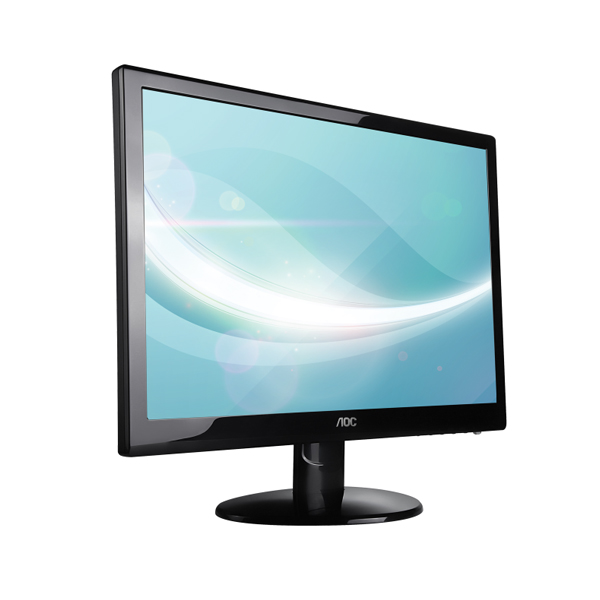

AOC 23" LED Monitor
Features:
The Ultra-high Dynamic Contrast Ratio (DCR) of 20,000,000:1 displays darker images with more depth and detail

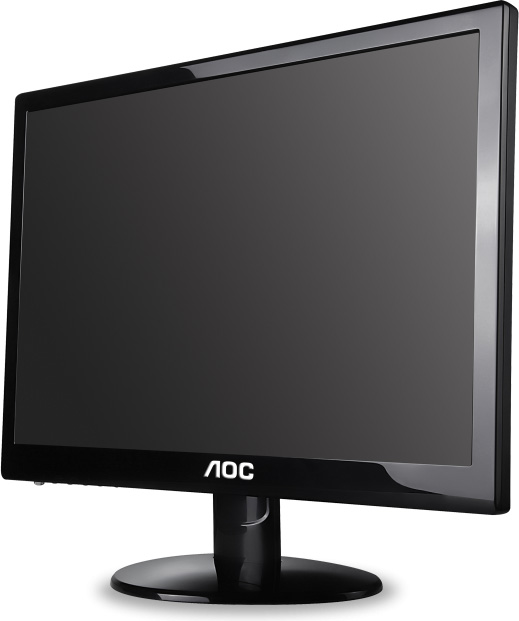

Control buttons are discreetly concealed to enhance the streamline and stylish design
Mercury (Hg) is poisonous, producing toxic environmental waste
Unlike the CCFL backlight in traditional monitors, the LED backlight panel contains no Hg
Support 2D to 3D
HDMI is the digital video and sound standard for connecting the latest conumer electronics like Blu-ray players and game concoles
The bundled Screen+ software splits the PC workspace into four self-contained panes to group application windows for easier viewing
Screen+ also supports multiple monitors
To save power, a timer can be set to automatically turn off the monitor after a user-defined interval
Specification:
Screen Size: 23"W
Viewable Image Size: 58.42cm
Pixel Pitch: 0.265(H)×0.265 (V)mm
Display Area: 509.76(H)×286.74 (V)mm
Brightness: 250 cd/m²
Contrast Ratio (typical): 20000000:1 (DCR)
Response Time (typical): 2ms
Viewing Angle: 170/160 (CR=10)
Scan Frequency H:
30K~83KHz V: 50~76Hz
Pixel Frequency: 148.5MHz
Recommended Resolution: 1920×1080@60Hz
Display Colours: 16.7M
HDCP Compatible: Yes
Input Signal Analog: RGB, DVI-D and HDMI

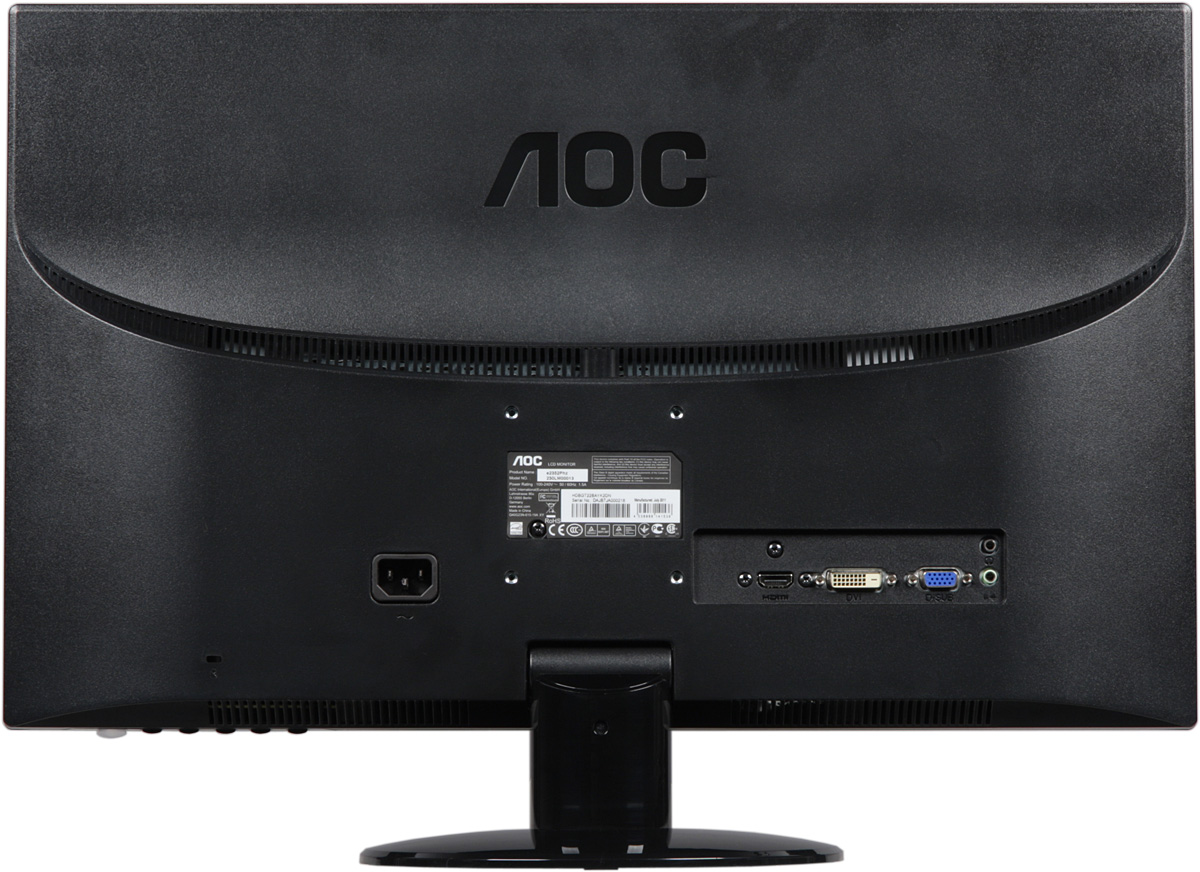

Input Connector: 15-pin D-Sub, 24-pin DVI and HDMI
Power Supply: 110~240VAC, 50/60Hz
Power Consumption:
Power On: <40W(Typical)
Standby: <0.6W
Plug & Play: DDC 2B/CI or VESA DDC2B
User Control: 3D/-,Volume/+, Source/Auto/Exit, Power,Menu
OSD Languages: 16Languages
Speakers: 2W x2
Safety & Regulations:
BSMI
VCCI
PSE
J-MOSS
MEPS
KC
e-standby
CCC
FCC
cCSAus
CE
TUV-Bauart
EPA 5.0
Windows 7
RoHS
Wall-Mount: 75mm x 75mm
Cabinet Colour: Black
Mechanical Function:
Tilt: -3°~19°
W×H×D (w/base)mm: 547.8x398.7x190
W×H×D (package)mm: 606×422×114
Weight (Net /Gross): 3.2Kg/4.22Kg
