Specification
WEB LINK:

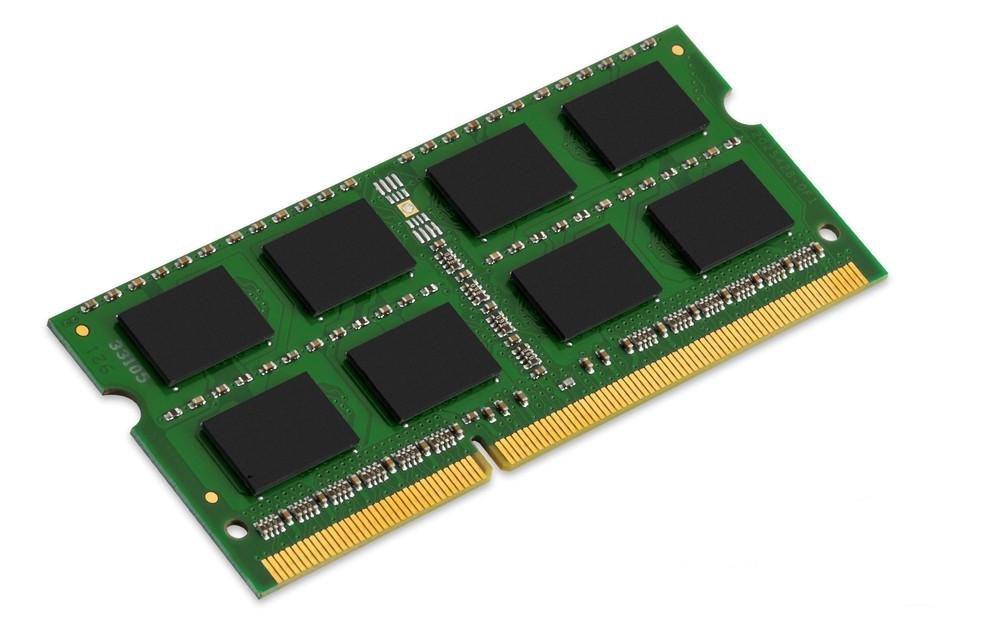

Kingston ValueRAM's 1G x 64-bit (8GB) DDR3- 1600 CL11 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.5V
Features:
-JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
-VDDQ = 1.5V (1.425V ~ 1.575V)
-800MHz fCK for 1600Mb/sec/pin
-8 independent internal bank
-Programmable CAS Latency: 11, 10, 9, 8, 7, 6
-Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
-8-bit pre-fetch
-Burst Length: 8 (Interleave without any limit, sequential with starting address "000" only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
-Bi-directional Differential Data Strobe
-Internal(self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm ± 1%)
-On Die Termination using ODT pin
-Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
-Asynchronous Reset
-PCB: Height 1.180" (30.00mm), double sided component
Specification:
-CL(IDD): 11 cycles
-Row Cycle Time (tRCmin): 48.125ns (min.)
-Refresh to Active/Refresh Command Time (tRFCmin): 260ns (min.)
-Row Active Time (tRASmin): 35ns (min.)
-Maximum Operating Power: 2.580 W
-UL Rating: 94 V - 0
-Operating Temperature: 0 C to 85 C
-Storage Temperature: -55 C to +100
What's in the box:
-1x Kingston 8GB DDR3-1600MHz Memory
