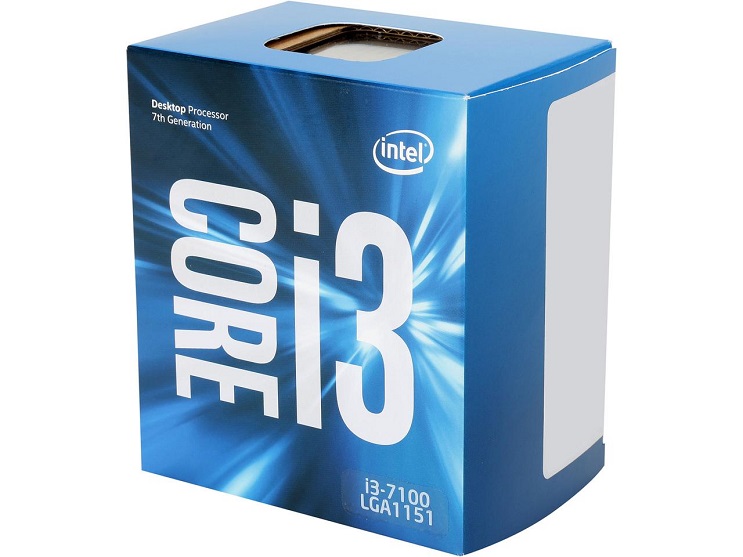

INTEL - CP-I3-7100



INTEL CORE I3 7100 3.9GHZ SKT1151 3M CAC

Description

INTEL I3-7100, 14 nm/ #of cores: 2/ #of Threads: 4/ 3.90GHz/ 3 MB SmartCache, 8 GT/s DMI3/ 64GB/ DDR4-2133/2400, DDR3L-1333/1600 @ 1.3V, Two Memory Channels/ Intel HD Graphics 630, 350.00MHz, 4K Support, HDMI 1.4/ DP/ DirectX support 12/ OpenGL 4.4.


Specification

INTEL Core I3-7100 Processor

Specifications:
Essentials:
Processor Number
i3-7100
Lithography: 14 nm

Performance:
# of Cores: 2
# of Threads: 4
Processor Base Frequency: 3.90 GHz
Cache: 3 MB SmartCache
Bus Speed: 8 GT/s DMI3
TDP: 51 W

Supplemental Information:
Conflict Free: Yes

Memory Specifications:
Max Memory Size (dependent on memory type): 64 GB
Memory Types: DDR4-2133/2400, DDR3L-1333/1600 @ 1.35V
Max # of Memory Channels: 2

Graphics Specifications:
Processor Graphics: Intel® HD Graphics 630
Graphics Base Frequency: 350.00 MHz
Graphics Max Dynamic Frequency: 1.10 GHz
Graphics Video Max Memory: 64 GB
4K Support: Yes, at 60Hz
Max Resolution (HDMI 1.4): 4096x2304@24Hz
Max Resolution (DP): 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel): 4096x2304@60Hz
DirectX* Support: 12
OpenGL* Support: 4.4
Intel® InTru™ 3D Technology: Yes
Intel® Clear Video HD Technology: Yes
Intel® Clear Video Technology: Yes
# of Displays Supported: 3

Expansion Options:
Scalability: 1S Only
PCI Express Revision: 3.0
PCI Express Configurations: Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes: 16

Package Specifications:
Sockets Supported: FCLGA1151
Max CPU Configuration: 1
Thermal Solution Specification: PCG 2015C (65W)
Package Size: 37.5 x 37.5 mm

Advanced Technologies:
Intel® Virtualization Technology (VT-x): Yes
Intel® Virtualization Technology for Directed I/O (VT-d): Yes
Intel® TSX-NI: Yes
Intel® 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: SSE4.1/4.2, AVX 2.0
Idle States: Yes
Enhanced Intel SpeedStep® Technology: Yes
Thermal Monitoring Technologies: Yes
Intel® Identity Protection Technology: Yes

Security & Reliability:
Intel AES New Instructions: Yes
Secure Key: Yes
Intel Software Guard Extensions (Intel SGX): Yes
Intel Memory Protection Extensions (Intel MPX): Yes
Intel OS Guard: Yes
Execute Disable Bit: Yes
Intel Boot Guard: Yes
