Specification

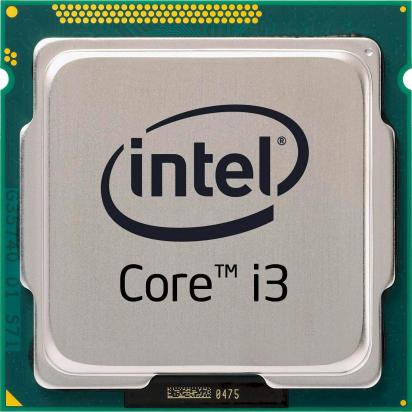

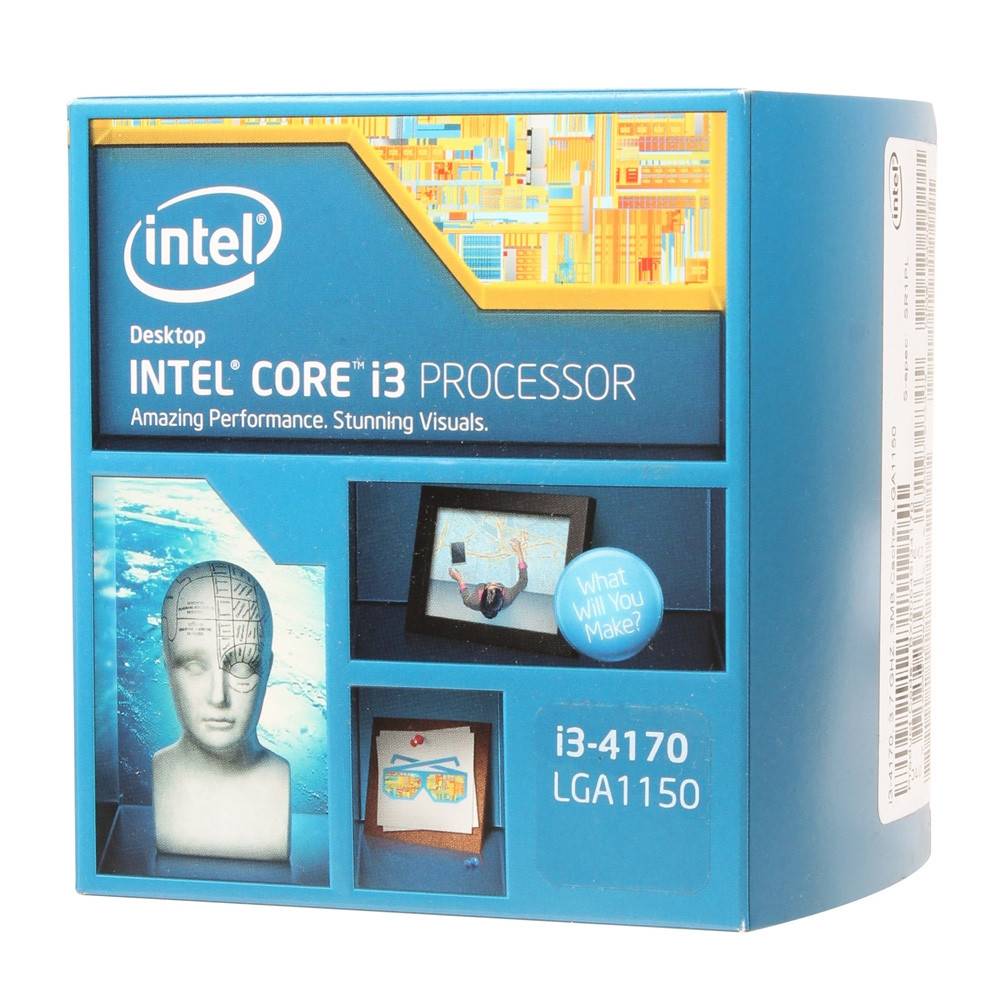

INTEL I3-4170 Processor
Specification:
Essential:
Processor Number: i3-4170
Intel® Smart Cache: 3 MB
DMI2: 5 GT/s
Instruction Set: 64-bit
Instruction Set Extensions: SSE4.1/4.2 AVX 2.0
Lithography: 22 nm
Scalability: 1S Only
Thermal Solution Specification: PCG 2013C
Performance:
# of Cores: 2
# of Threads: 4
Processor Base Frequency: 3.7 GHz
Cache: 3 MB
Bus Speed: 5 GT/s DMI2
TDP: 54 W
Memory Specifications:
Max Memory Size (dependent on memory type): 32 GB
Memory Types: DDR3 and DDR3L 1333/1600 at 1.5V
Max # of Memory Channels: 2
Max Memory Bandwidth: 25.6 GB/s
ECC Memory Supported: Yes
Graphics Specifications:
Processor Graphics: Intel® HD Graphics 4400
Graphics Base Frequency: 350 MHz
Graphics Max Dynamic Frequency: 1.15 GHz
Graphics Video Max Memory: 2 GB
Graphics Output: eDP/DP/HDMI/VGA
Max Resolution (HDMI): 4096x2304@24Hz
Max Resolution (DP): 3840x1600@60Hz
Max Resolution (eDP - Integrated Flat Panel): 3840x2160@60Hz
Max Resolution (VGA): 1920x1200@60Hz
DirectX* Support: 11.1
OpenGL* Support: 4.3
Intel® Quick Sync Video: Yes
Intel® InTru™ 3D Technology: Yes
Intel® Wireless Display: Yes
Intel® Clear Video HD Technology: Yes
# of Displays Supported: 3
Device ID: 41E
Expansion Options:
PCI Express Revision: 3.0
PCI Express Configurations: up to 1x16, 2x8, 1x8/2x4
Max # of PCI Express Lanes: 16
Package Specifications:
Max CPU Configuration: 1
TCASE: 72 °C
Package Size: 37.5mm x 37.5mm
Graphics and IMC Lithography: 22nm
Sockets Supported: FCLGA1150
Advanced Technologies:
Intel Hyper-Threading Technology: Yes
Intel Virtualization Technology (VT-x): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: SSE4.1/4.2, AVX 2.0
Idle States: Yes
Enhanced Intel SpeedStep Technology: Yes
Thermal Monitoring Technologies: Yes
Security & Reliability:
Intel Data Protection Technology:
Intel AES New Instructions: Yes
Secure Key: Yes
Intel Platform Protection Technology:
Execute Disable Bit: Yes
