Specification

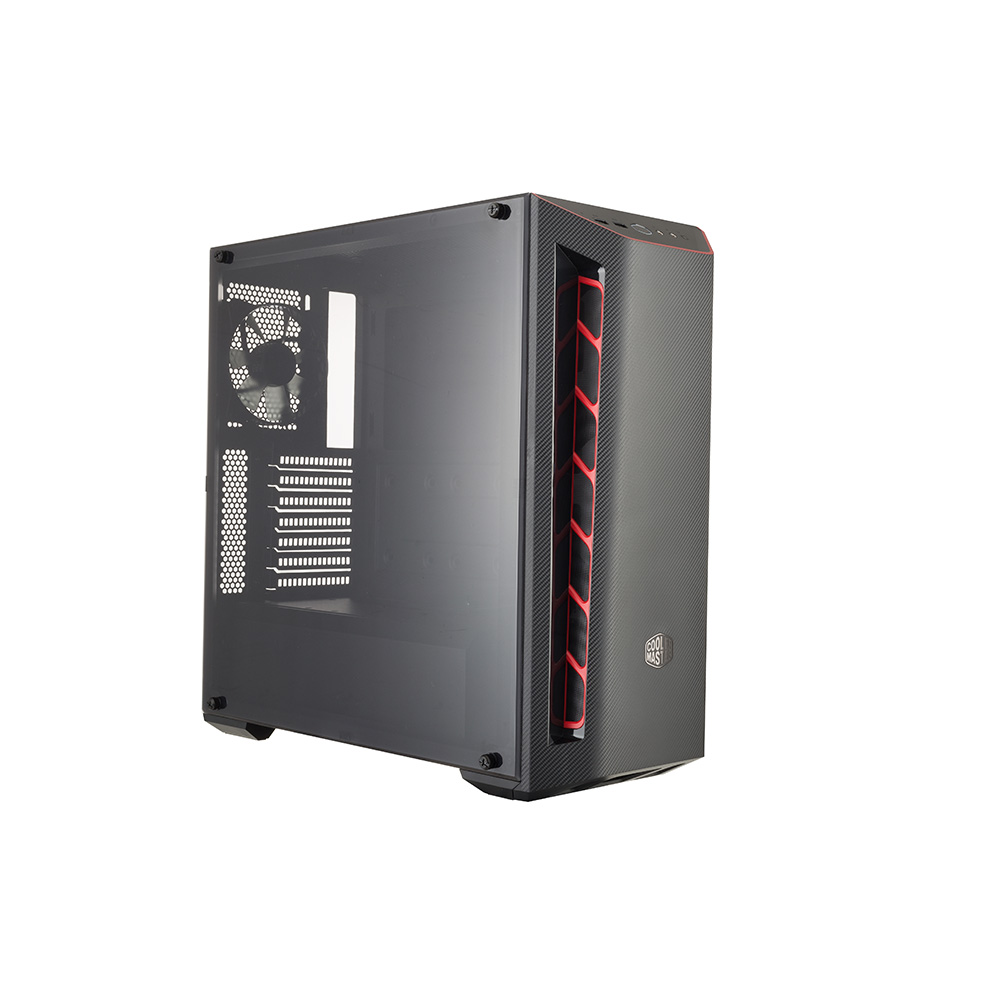

COOLER MASTER MASTERBOX MB510L W/RED TRIM+SIDE PANEL ATX BLACK
The MasterBox MB510L offers aggressive ventilation on the front panel that allows the system to breather easily while ventilation on top panel adds additional thermal support. MB510L supports up to 400mm GPU with a PSU shroud and edge-to-edge transparent side panel.
Features:
-Carbon Texture
-Aggressive intakes
-Thermal Performance
-Fan and radiator support
-Edge-to-edge transparent side panel
Specifications:
-Materials: Steel, Plastic
-Dimensions: 496(L) x 217(W) x 468(H) mm
-Motherboard Support: ATX(Up to 272mm width), Micro-ATX, -Mini-ITX
-Expansion Slots: 7
-Drive Bays: Combo 3.5/2.5": 2(Max.2); SSD: 4(Max.6)
-I/O Port: USB3.0 x2, Audio in/out
Pre-installed Fan:
-Rear: 120mm x1
Fan Support:
-Top: 120mm x2/140mm x2
-Front: 120mm x3/140mm x2
-Rear: 120mm x1
Liquid Cooling Support:
-Front: 120/140/240/280/360mm radiator (75mm clearance); -Top: 120/240mm; Rear: 120mm
Clearances:
-CPU Cooler: 165mm
-PSU: 180mm
-GPU: 410mm
-Cable Routing: Behind MB Tray- 19mm
-Dust Filters: Front, bottom
Package Specs:
-Dimensions(L*W*H): 52.3*27.6*56.8cm
-Weight: 5.4kg
In the Box:
-MB501L ATX w/TG Case x 1
-120mm Black fan(Rear) x 1
