Specification

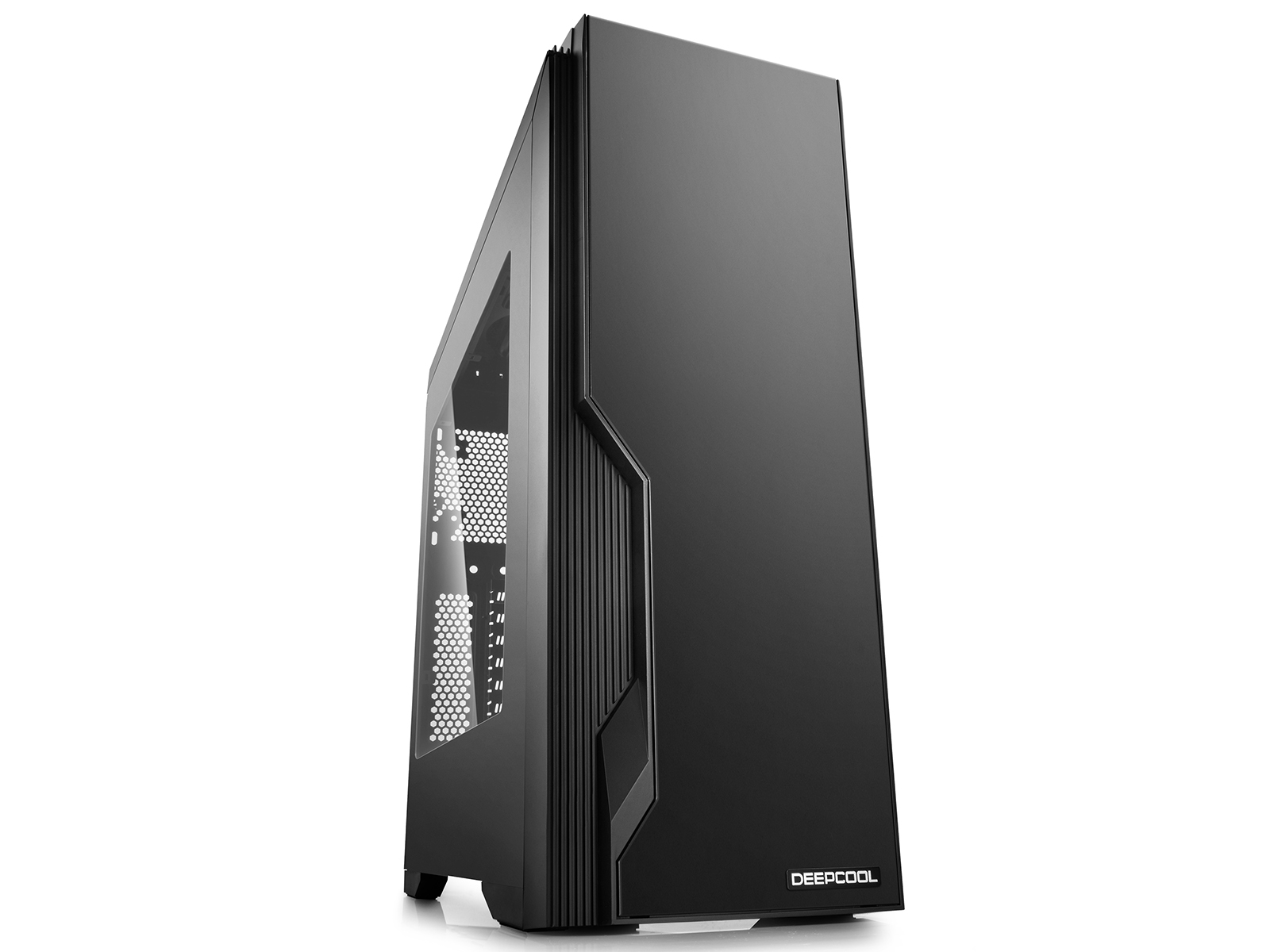

DEEPCOOL DUKASE V2 ATX Chassis
Features:

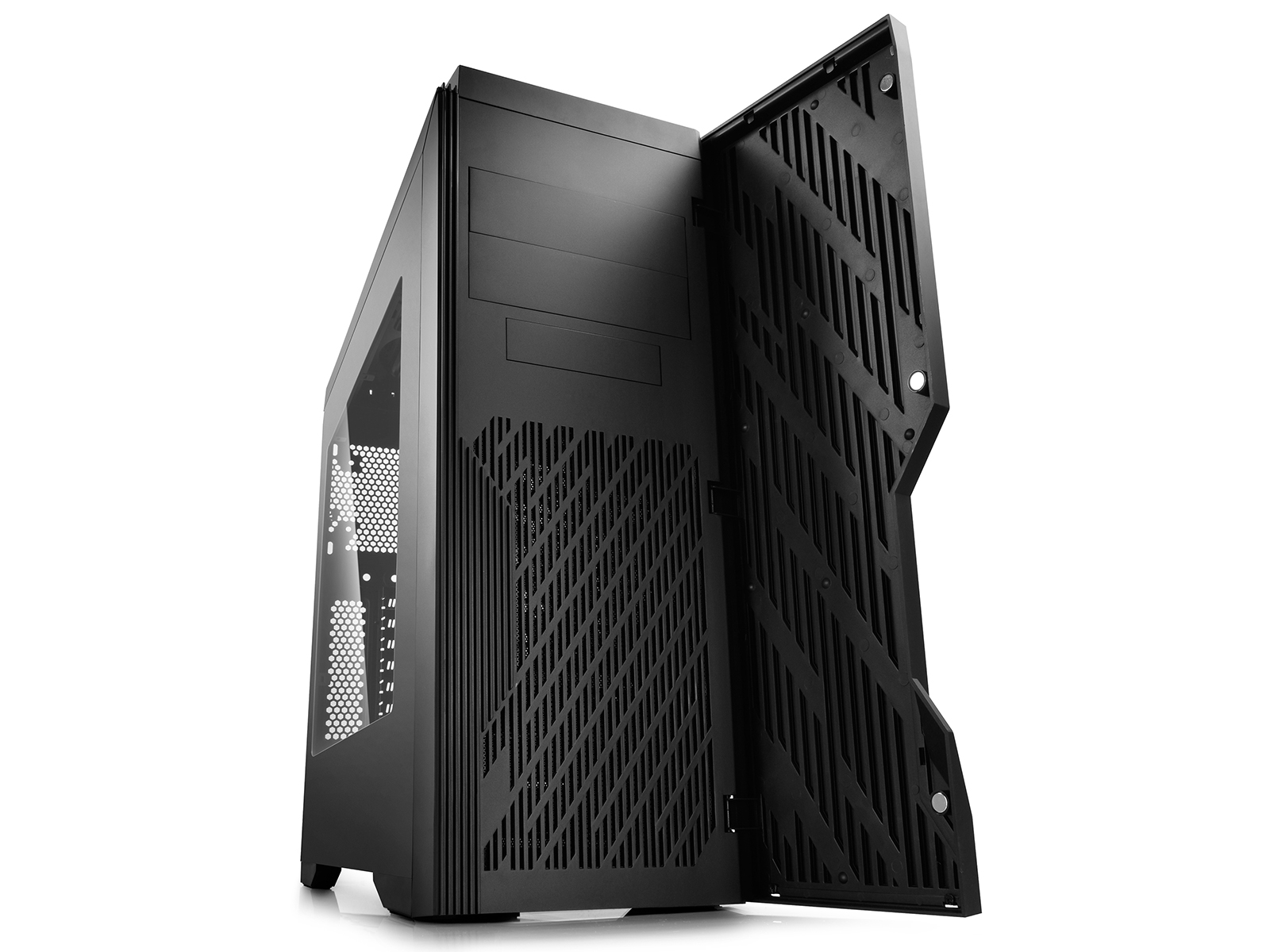

Quick-move and suspention style design for top panel, easy for cleaning and excellent for cooling
Support 120/240/140/280mm Liquid Cooler installation at top
Support Split type Liquid Cooling System installation
With one fan-speed adjusting switch, can control 3 fans at the same time
High-quality skin-like electrostatic powder coating offers a superior touch sensation

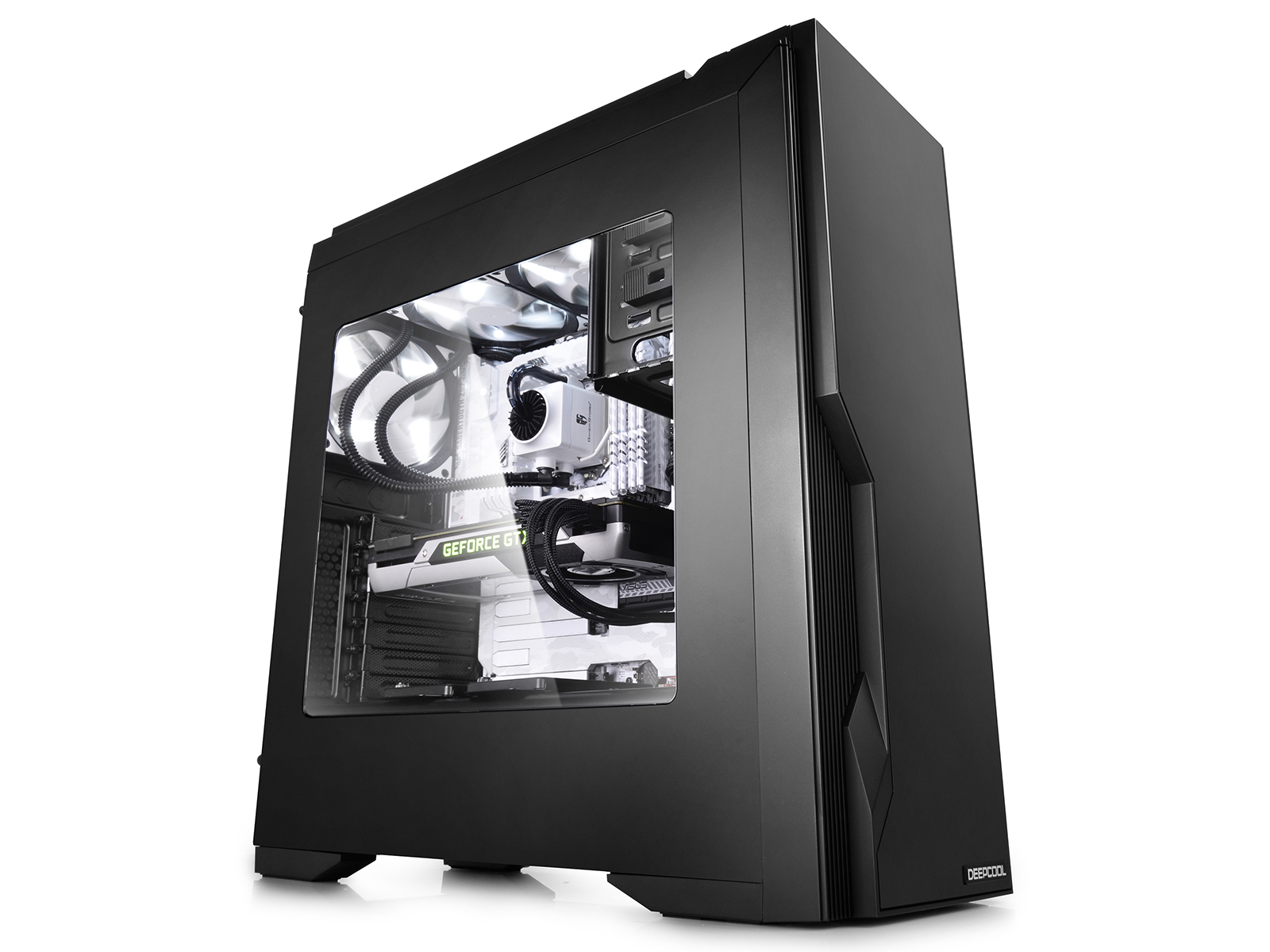

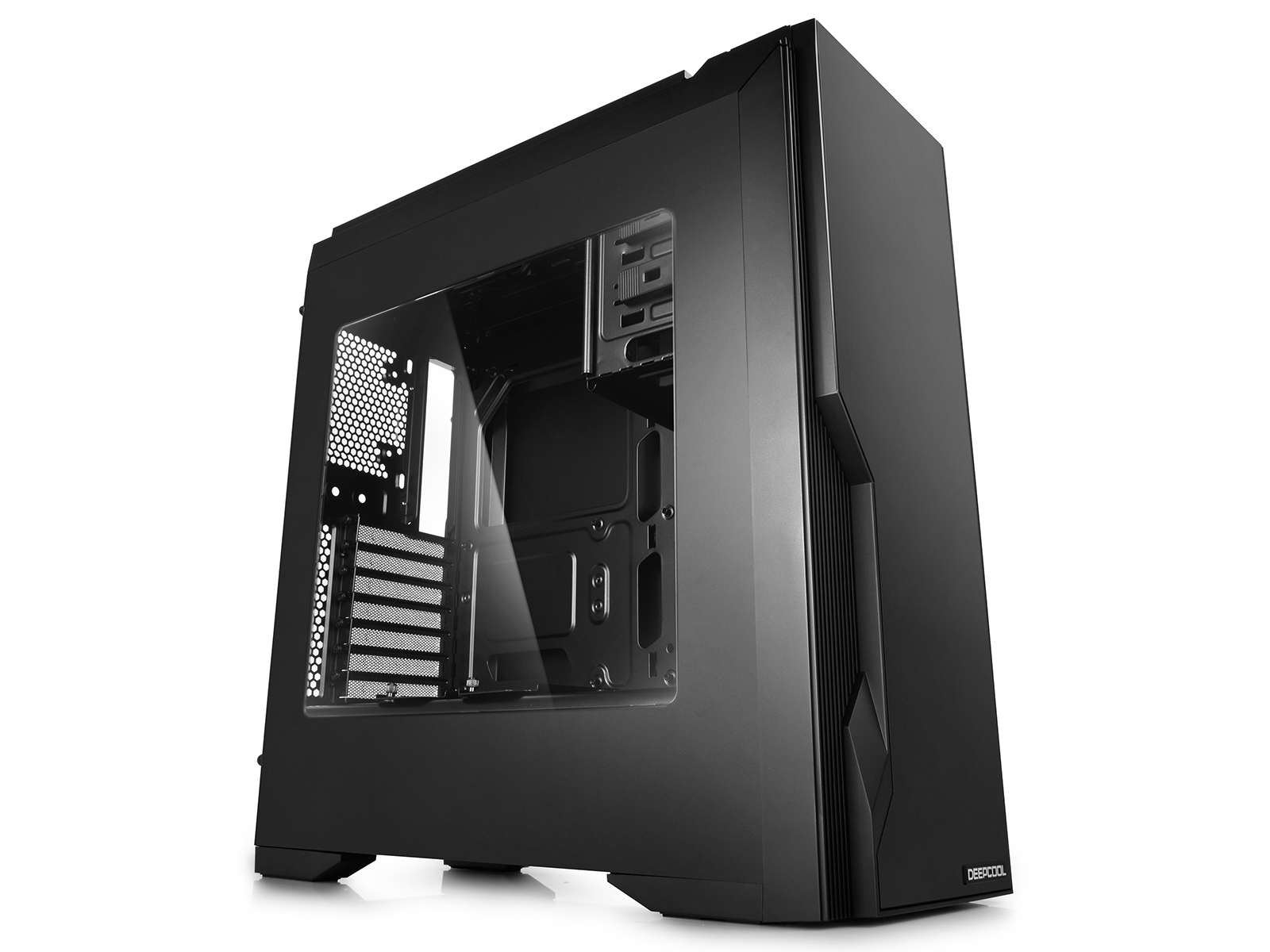

Amazing side window reveals the interior and ensures a perfect visible effect
Wider space and logical holes design offer a better management
The ODD free metal front panel not only keeps a nice appearance but ensures the whole build to get a better ventilation performance
Independent mounting positions for 2.5" SSD
Preset one 2.5" spare mounting holes
Newly designed metal material 3.5" HDD bracket
Bigger cutout for easier CPU cooler installation
With rubber buffer and dust filter for PSU
1 xUSB 3.0 + 1 xUSB 2.0 Ports
Technical Specs:
Materials: SPCC+PLASTIC (ABS)(Panel thickness: 0.7mm)
Product Dimension: L482.7×W202×H504mm
Weight: Net.: 7.03kg
Gross: 8.27kg
5.25" Drive Bays: 2
3.5" Drive Bays: 1 External (for floppy drive or 3.5" card-reader) 3.5"/2.5"Drive Bays: 2
2.5" Drive Bays: 3
I/O Panel: 1×USB3.0/1×USB2.0/Audio(HD)×1/Mic×1
Expansion Slots: 7 (slot covers fixed by screws for easy removing and reuse)
Cooling Fans: Pre-installed: Rear: 1×120mm fan; Optional: Front: 2×120mm or 1×140mm Top: 2×120/140mm Power Supply Type: ATX PS2(Length less than 170mm)
CPU Cooler Compatibility: 160mm height
Liquid Cooler: 120/240/140/280mm at top, 120mm at rear
VGA Compatibility: 390mm
Motherboards: ATX/MICRO ATX/MINI-ITX
