Specification
DEEPCOOL DUKASE V3 ATX Case
Features:
Easily-removable suspended top panel for easy cleaning and enhanced cooling
Support top mounting of a 120/240/140/280 mm Liquid Cooler (L310xW140xH56mm)
Compatible with split Liquid Cooling System
Movable water pump & tank mounting holes have been provided
One fan-speed adjustment switch capable of controlling 3 fans at once
High-quality electrostatic powder biomimetic coating provides superior texture

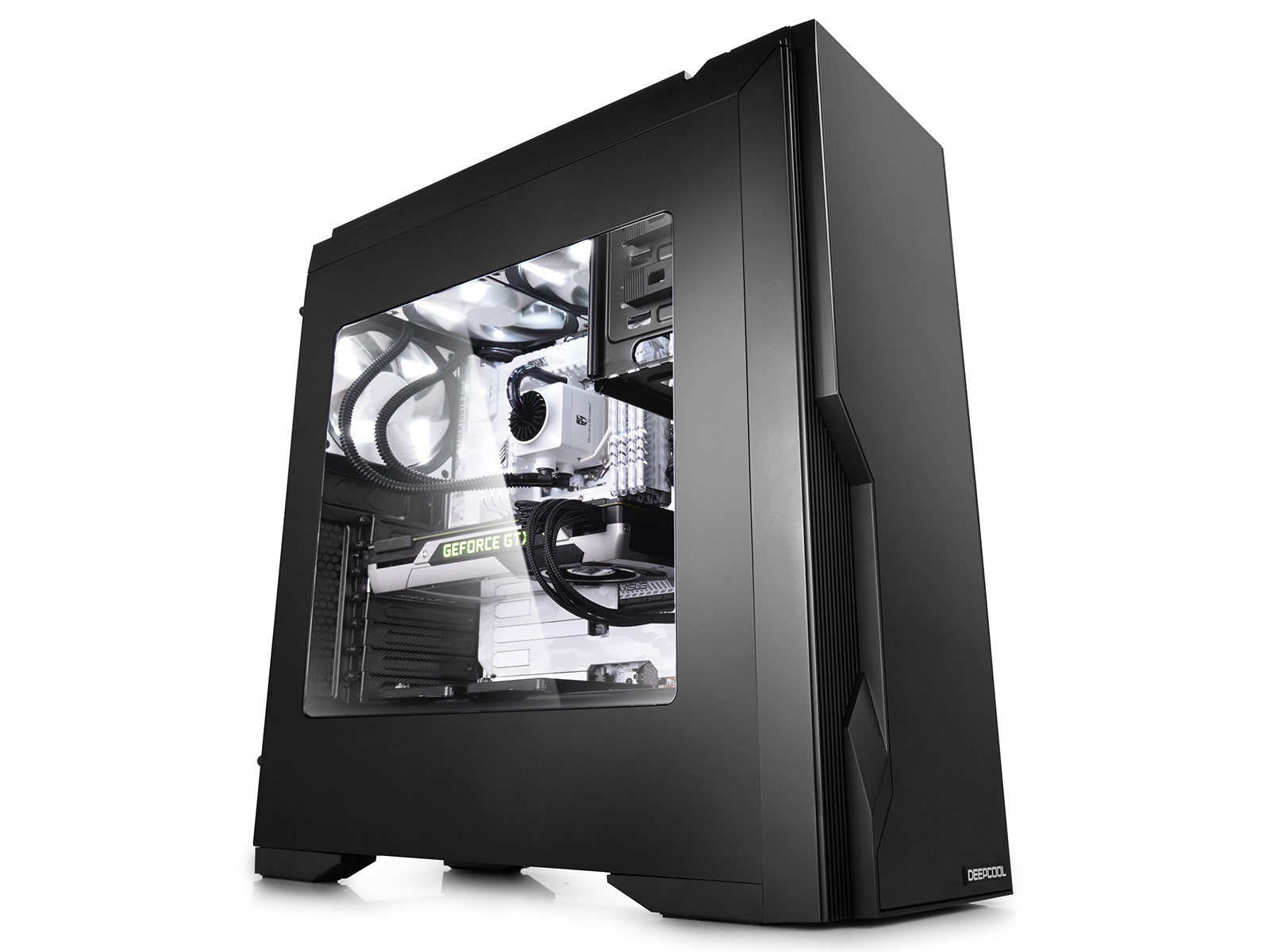

100% visibility side window perfectly reveals system interiors
Spacious configuration and rationalized port and hole layout enhance cable management

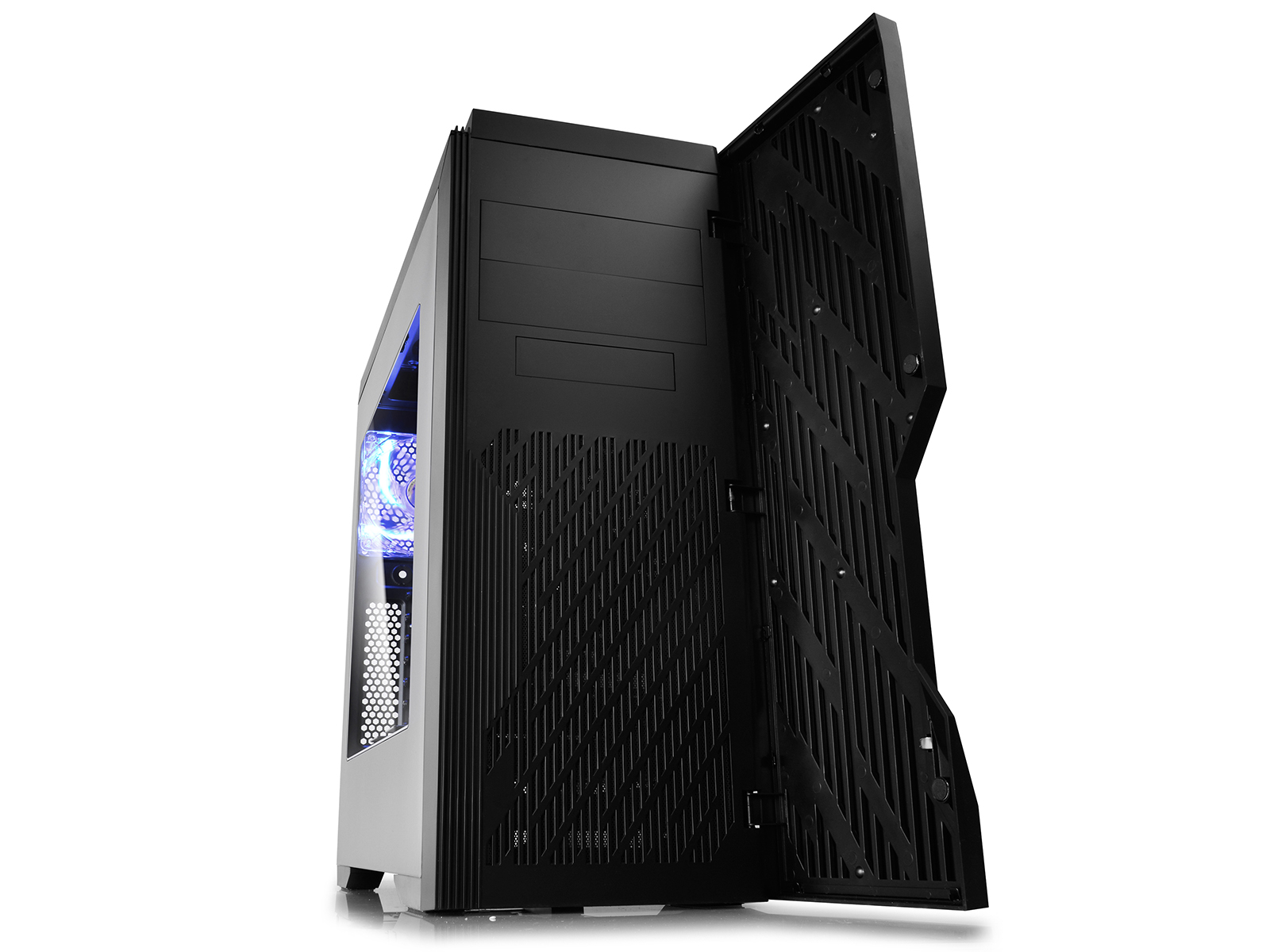

ODD-free metallic front panel provides a sleek vibe while providing improved ventilation for the entire chassis
Independent mounting position for 2.5-inch SSD
1 extra set of 2.5-inch drive mounting holes
3.5-inch HDD bays constructed using novel me
Specialized LED strip mounting slots to light up your rig
Wider opening to facilitate CPU cooler installation
PSU rubber buffer and dust filters
1x USB3.0 + 1x USB2.0 ports
1x 120mm blue LED fan and 1x 120mm black fan (pre-installed)
NOTE: The top panel must be first removed to remove the front panel
Specifications:
Motherboards ATX/MICRO ATX/MINI-ITX
Materials SPCC+PLASTIC (ABS)(Panel thickness: 0.7mm)
Product Dimension L482.7×W202×H504mm
2x 5.25" Drive Bays, 1x 3.5" Drive Bays External (for floppy drive or 3.5" card-reader)
2x 3.5"/2.5"Drive Bays, 3x 2.5" Drive Bays
I/O Panel: 1×USB3.0/1×USB2.0/Audio (HD)×1/Mic×1
Expansion Slots: 7 (slot covers fixed by screws for easy removing and reuse)
Cooling Fans:
Pre-installed: Rear: 1×120mm blue LED fan, Front: 1×120mm black fan
Optional: Front: 1×120mm or 1×140mm Top: 2×120/140mm
Power Supply Type: ATX PS2 (Length less than 170mm)
CPU Cooler Compatibility: 160mm height Liquid Cooler: 120/240/140/280mm at top, 120mm at rear
VGA Compatibility 390mm
