Specification

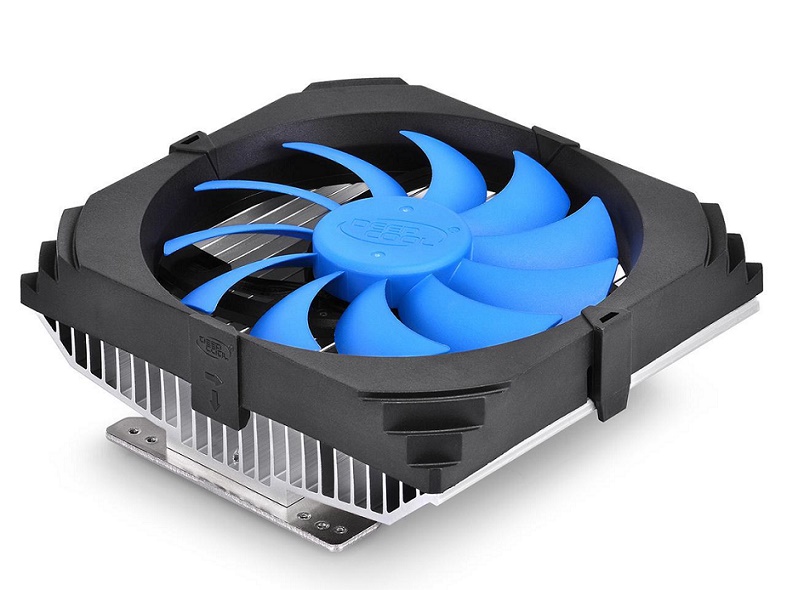

DEEPCOOL V95 Silent VGA Cooler
Features:
Multiple mounting holes for supporting mainstream NVIDIA and ATI VGA cards

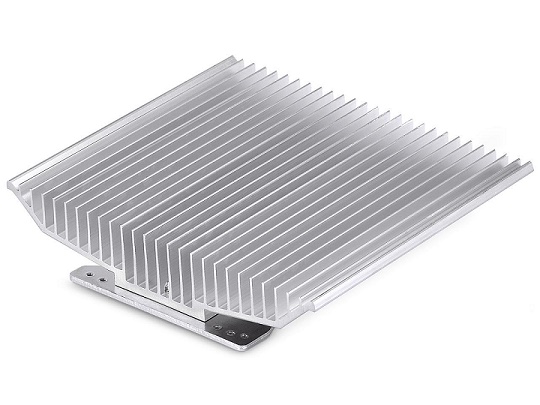

Well-built aluminum heatsink with reliable heat dissipation performance

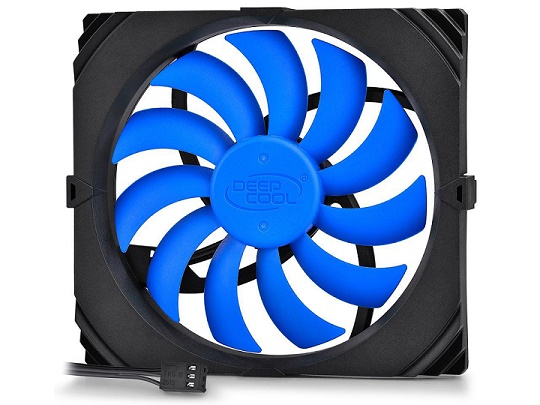

10-cm fan delivering large airflow with low noise
Easy-to-install design for rapid mounting of the heatsink
Application For:
43mm Mounting holes:
NVIDIA GeForce GT 240
NVIDIA Geforce 8500/8600/7300/7600/6000(Except 6600 AGP Series)
ATI Radeon HD 6700(6770/6750)
ATI Radeon HD 5700(5770/5750)/5670
ATI Radeon HD 2400/2600 Series
ATI Radeon X1600/X1650 Series
53mm Mounting holes:
NVIDIA GeForce GTX 550 Ti
NVIDIA GeForce GTS 450/GTS 250
NVIDIA GeForce 9800Series
NVIDIA GeForce 8800GTS/8800GT
NVIDIA GeForce 9600GT/9500GT/9400GT
NVIDIA GeForce 7950/7900/7800/7600/6800
ATI Radeon HD 5500Series/ 4800Series/4700Series/4600Series/ 3800Series/ 3600Series
ATI Radeon HD 3450
ATI Radeon X1900/1950/X1800
55mm Mounting holes:
NVIDIA GeForce FX 5700/5600Series
NVIDIA GeForce FX 5200/5500Series
NVIDIA GeForce 4 MXSeries
ATI Radeon X1300Series
ATI Radeon XSeries
ATI Radeon 9000Series(Except9550/9600AGP Series)
80mm Mounting holes:
NVIDIA Geforce 7400 Series
NIVDIA Geforce 7600 Series
Specification:
Overall Dimension: 119.5X108.5X40.5mm
Fan Dimension: 100X100X15mm
Net Weight: 284g
Bearing Type: Hydro Bearing
Rated Voltage: 12VDC
Operating Voltage: 10.8~13.2VDC
Started Voltage: 7VDC
Rated Current: 0.15±10%A
Power Input: 1.8W
Fan Speed: 2000±10%RPM
Max. Air Flow: 29.96CFM
Noise: 25.2dB(A)
