ADVANTECH - ASMB-782G2-00A1E



ASMB-782G2-00A1E

Description

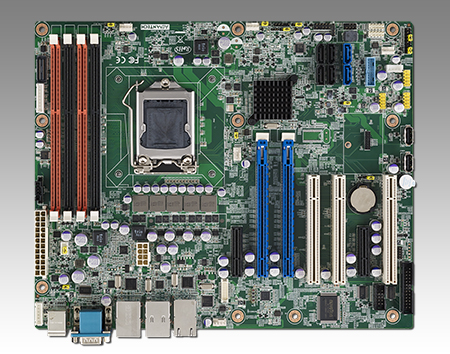

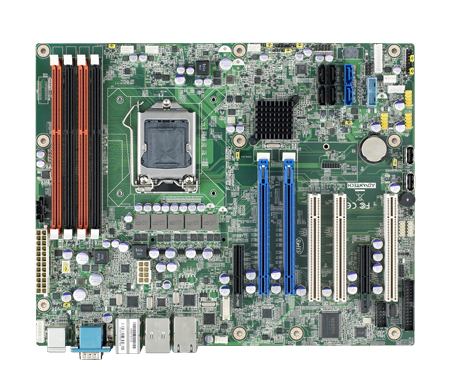

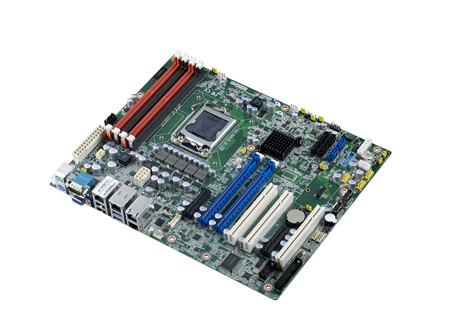

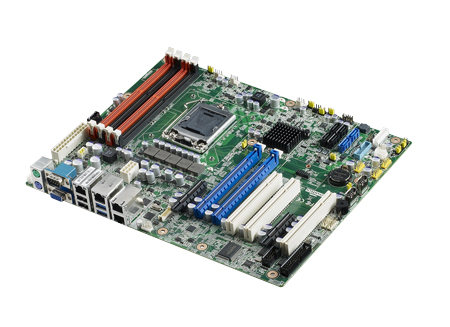

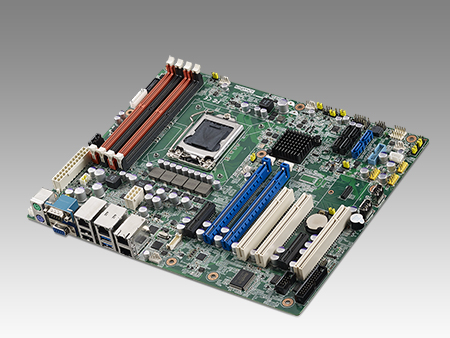

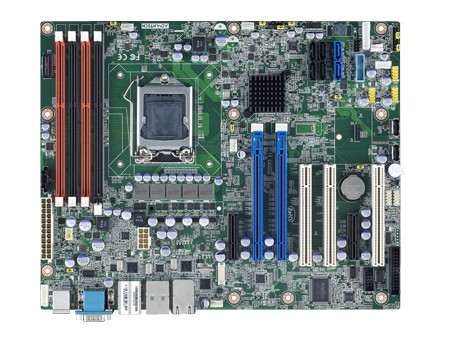

LGA 1155 Intel® Xeon® E3 V2 ATX Server Board with 2 PCIe x16 slots (x8 link), 2 PCIe x4, USB 3.0, PCIe Gen III, Quad LANs


Specification

ASMB-782G2-00A1E Specs

Form Factor/Form FactorATX
Processor System/CPUIntel Xeon E3 1275v2
Processor System/CPU TDPUp to 77 W
Processor System/FrequencyUp to 3.5 GHz
Processor System/Core Number4
Processor System/L3 Cache8MB
Processor System/BIOSAMI EFI 64 Mbit
Processor System/ChipsetIntel C216
Processor System/Integrated GraphicsYes
Processor System/DMI-
Processor System/QPI-
Memory/TechnologyDDR3 1600 MHz
Memory/CapacityUp to 32 GB (8 GB per DIMM)
Memory/ECC SupportYes
Memory/Socket4 x 240-pin DIMM
Memory/REG Support-
Display/ControllerIntel HD graphics Integrated
Display/Graphic MemoryShare system memory up to 1 GB with 2 GB and above memory installed
Display/Multiple DisplayDual
Display/Display InterfaceVGA: Up to 2048 x 1563 DVI-D: Up to 1920 x 1200
Expansion Interface/PCI Express x 16-
Expansion Interface/PCI Express x 82
Expansion Interface/PCI Express x 42
Expansion Interface/PCI Express x 1-
Expansion Interface/PCI3
Expansion Interface/LPC1
Expansion Interface/SMBus2
Expansion Interface/PME-
Ethernet/ControllerLAN1: Intel 82579LM LAN2: Intel 82574L
Ethernet/Speed10/100/1000 Mbps
Ethernet/Connector2 x RJ45
WatchDog Timer/OutputSystem Reset
WatchDog Timer/IntervalProgrammable 1~255 sec
I/O/SATA4 x SATA II (RAID 0, 1, 10) 2 x SATA III (RAID 0, 1, 10)
I/O/SAS Port-
I/O/SAS controller-
I/O/USB3.02
I/O/USB2.08
I/O/GPIO8-bit
I/O/LPT1
I/O/COM Port-
I/O/PS/2 Keyboard/Mouse1
I/O/SPDIF-
I/O/System Fan4

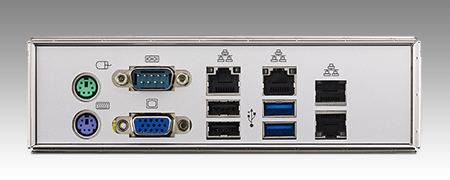

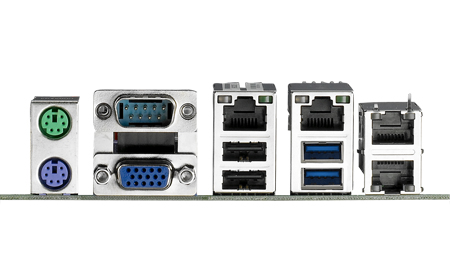

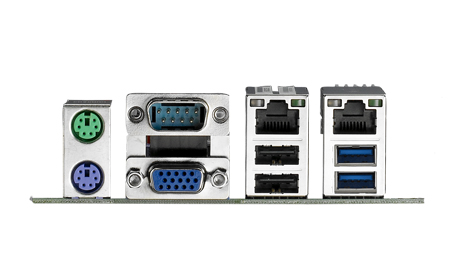

Rear I/O Interface/Display1
Rear I/O Interface/LAN2 / 4
Rear I/O Interface/USB3.02
Rear I/O Interface/USB2.02
Rear I/O Interface/COM1 x RS232
Rear I/O Interface/PS/22 (1 x Keyboard, 1 x Mouse)
Rear I/O Interface/DVI-
Rear I/O Interface/Ethernet2
Rear I/O Interface/VGA1
Power Requirement/Voltage+12 V/+5 V/+3.3 V/+5 VSB/V12_8P/-12 V/ Total
Power Requirement/Current66.47A/29.32A/20.48A/2.7A/-/-/1025.32W
Environment/Operational Temperature0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Environment/Non-Operational Temperature-40~ 85° C and 60° C @ 95% RH Non-Condensing
Environment/Non-Operating Vibration3.5 Grms
Physical Characteristics/Dimensions (LxW)304.8 x 244 mm (12" x 9.6")
Physical Characteristics/Weight0.8 kg (1.8 lb)
Certification/EMCCE, FCC
Management Solution/Software-
Management Solution/Out of band remote management-
