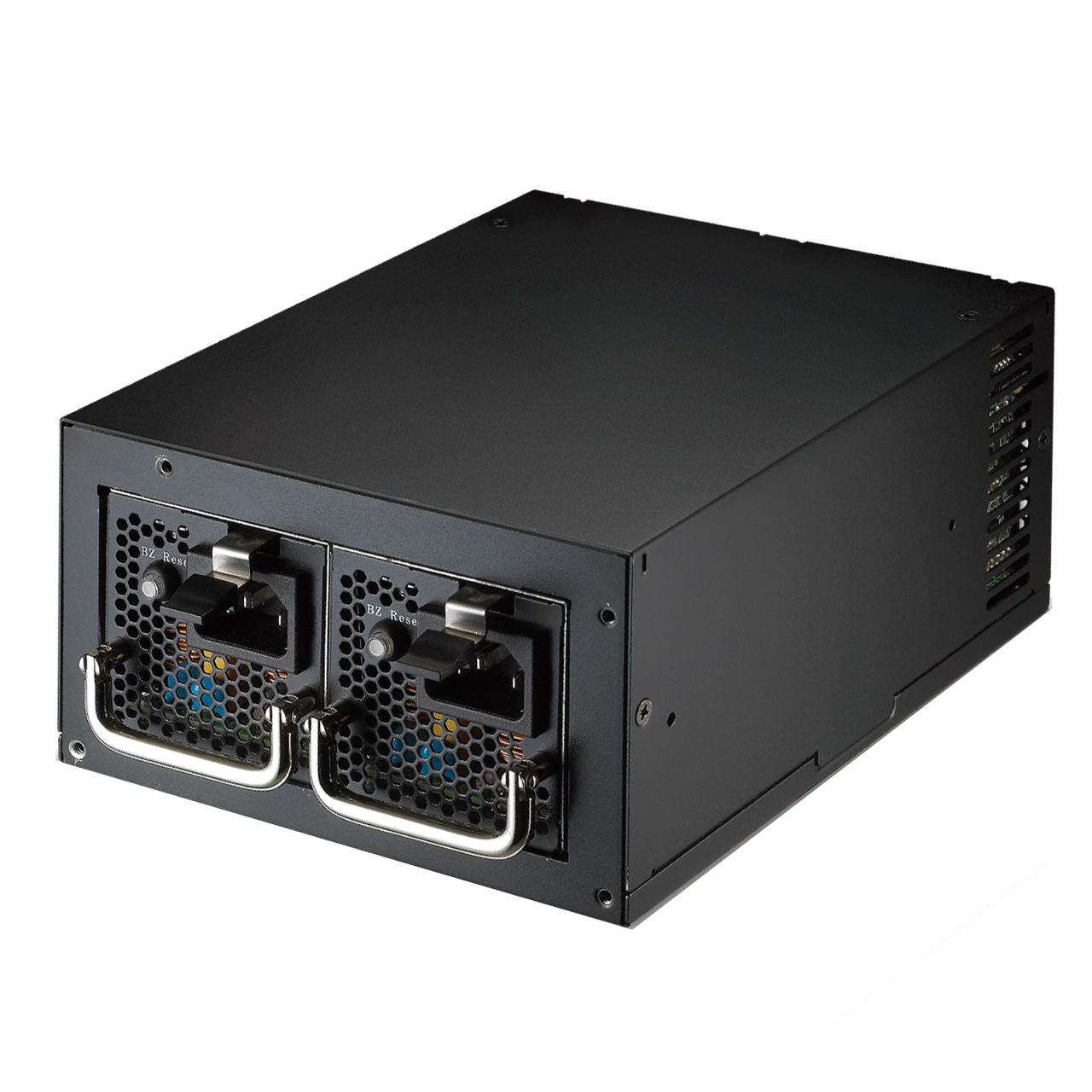

FSP TWINS 500W ATX REDUDANT 80+ GOLD PSU

Twins series, a redundant power supply, is designed for standard ATX or PS2 chassis, no front end bracket needed, ideal for mail, web or home server.Hot swappable modules design provides stable power supply: when one fails, the other can take over the load immediately.Thus users do not need to worry about any server/PC power off situation.

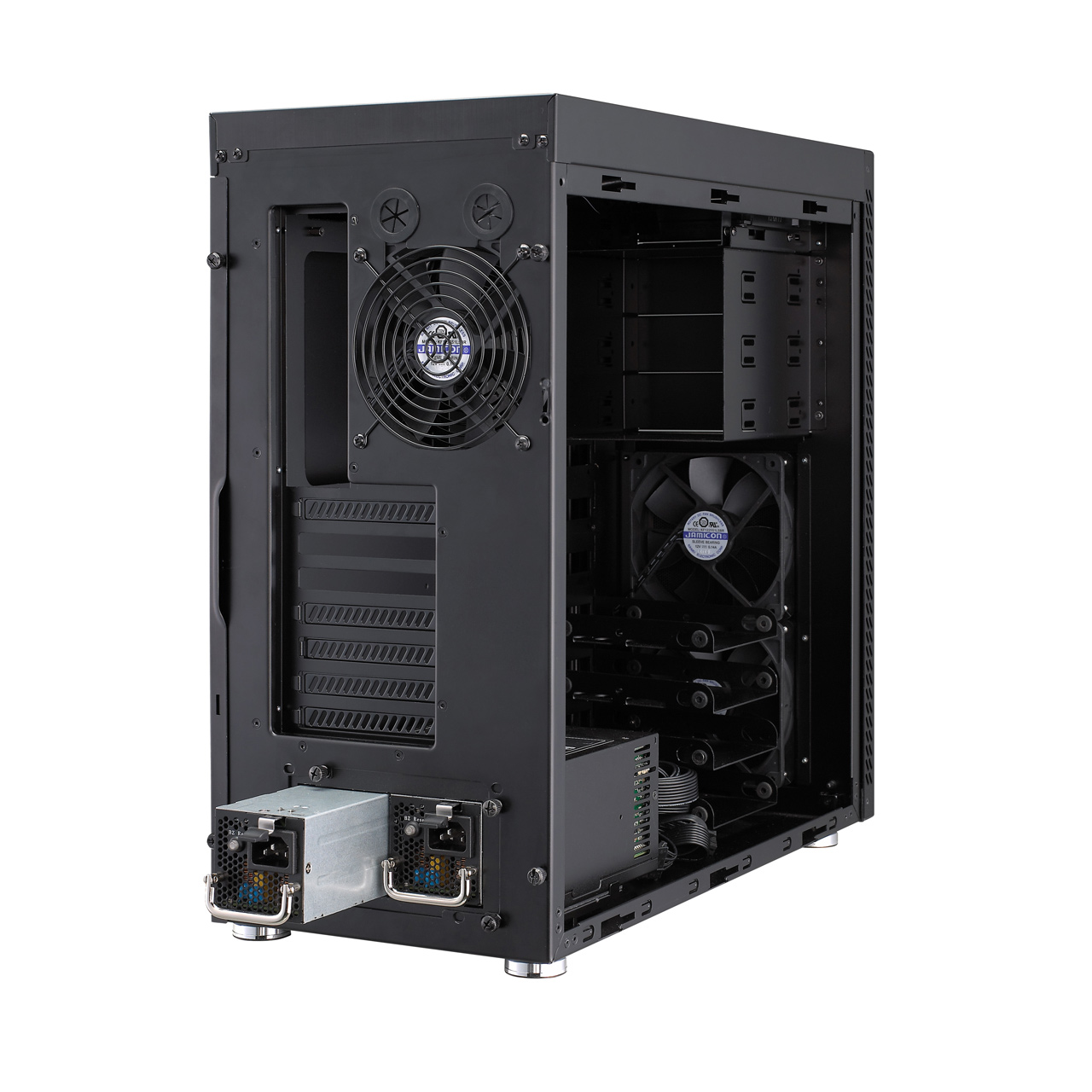

ATX PS2 redundant size, no front end bracket needed, ideal for mail, web and home server
Digital-controlled power supply design can be monitored by "FSP Guardian" software

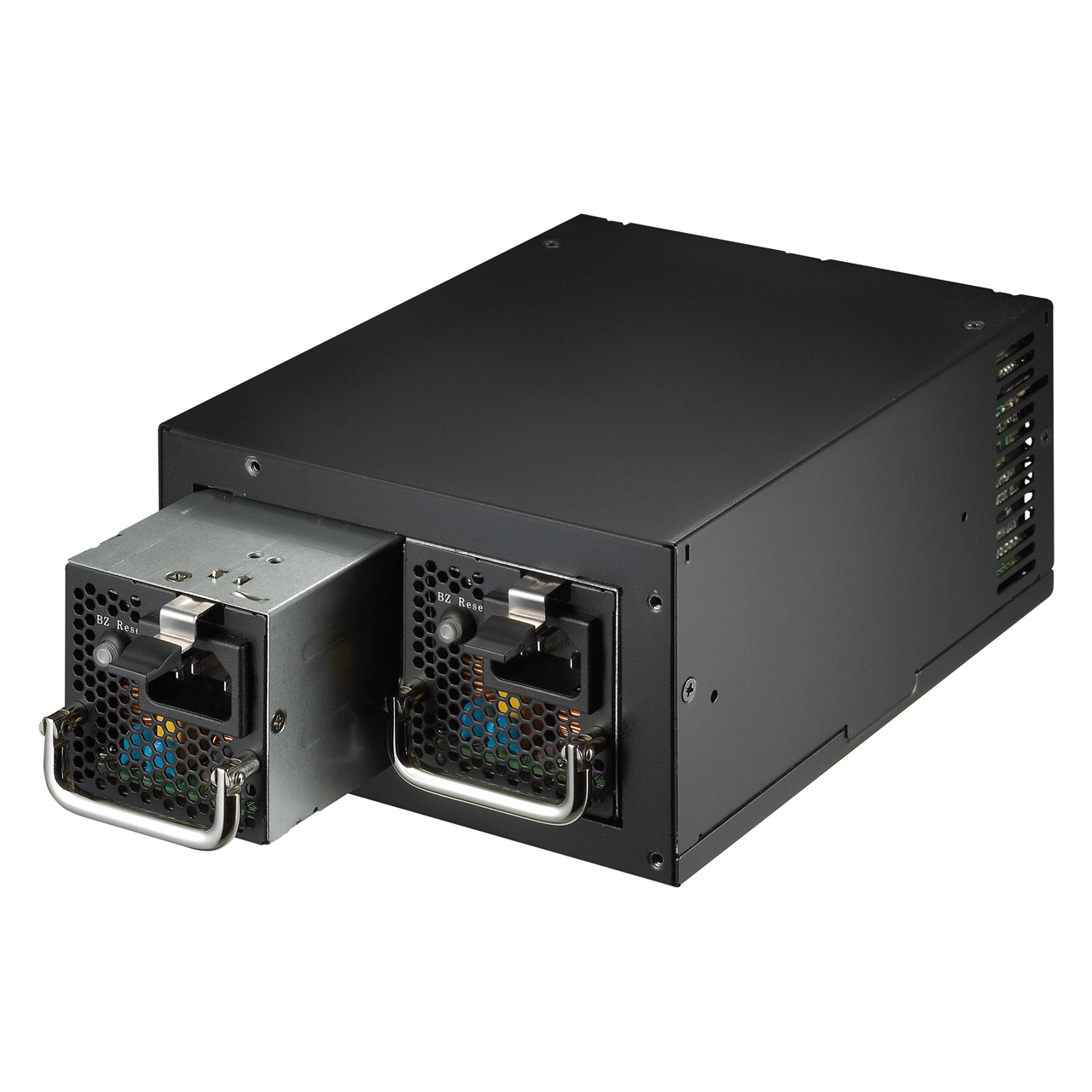

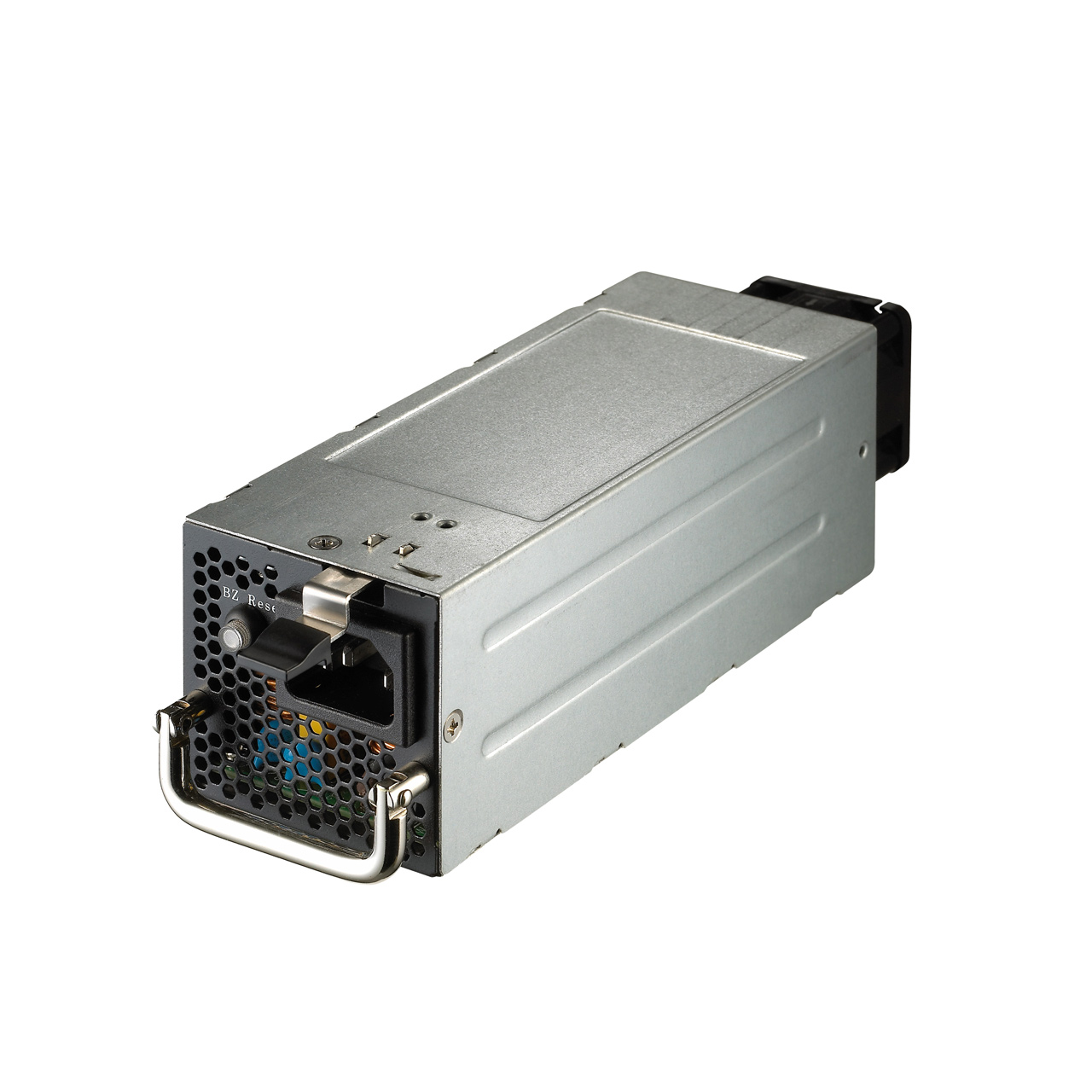

Hot swappable modules design and no worry about server/PC power off when one of modules failure
Complete protection: over current protection, short circuit protection, over voltage protection, fan failure protection
Alarm guard design by smart power supply status LED indicator
80 PLUS 230V Internal Gold Certification
Complies with ATX 12V and EPS 12V standards
Flat ribbon cables, ideal solution for applications with space constraint issue

Specifications:
Model: FSP500-70RGHBB1
Rated Output Power: 500W
Form Factor: PS2 ATX Redundant
80 PLUS Certification: Gold
Input Voltage: 100-240 Vac (Full Range)
Input Current: 8-4A
Input Frequency: 60-50 Hz
PFC: Active PFC
Efficiency: 90%
Fan Type: Dual ball bearing fan, 40mm
Dimensions: 150(L) x 86(W) x 190(H) mm
Weight: 2.85kg
Protection: OCP/OVP/SCP/FFP (Fan Failure Protection)
MTBF: 100,000 Hrs

Connectors:
ATX 24 x1
4+4 PIN x2
PCI-E 6+2 x2
SATA x6
Molex x2
Floppy x1
USB 8 Pin x1
