Specification

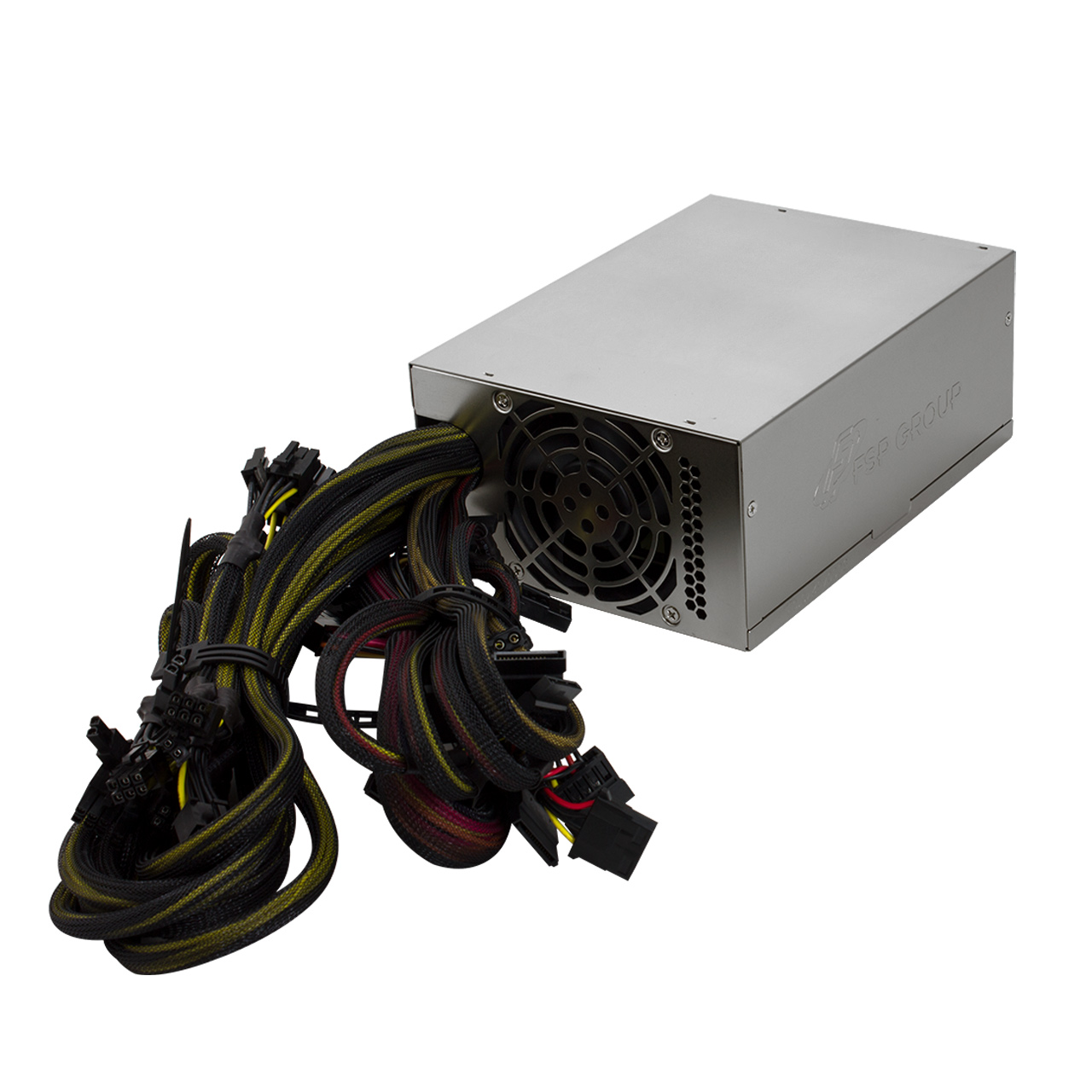

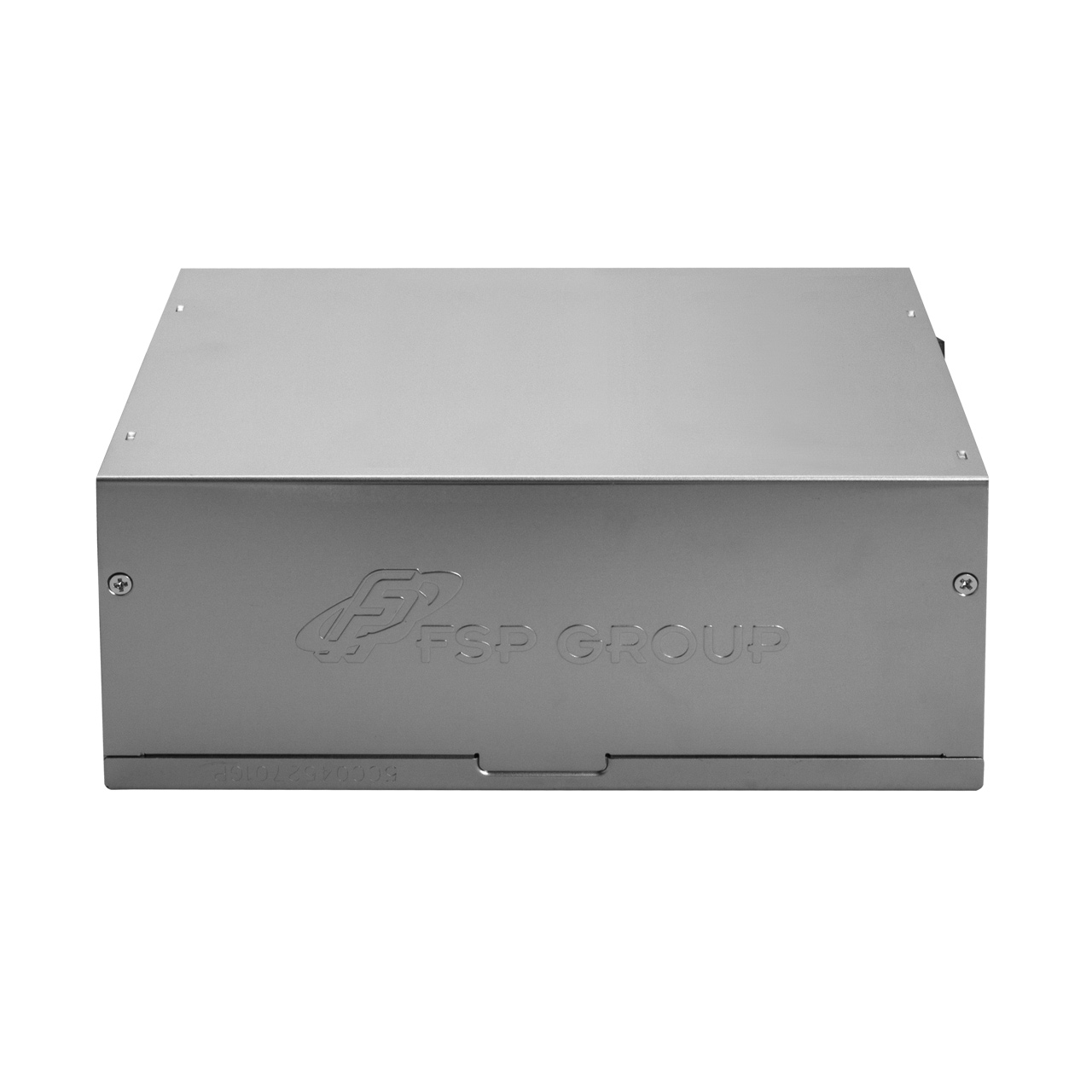

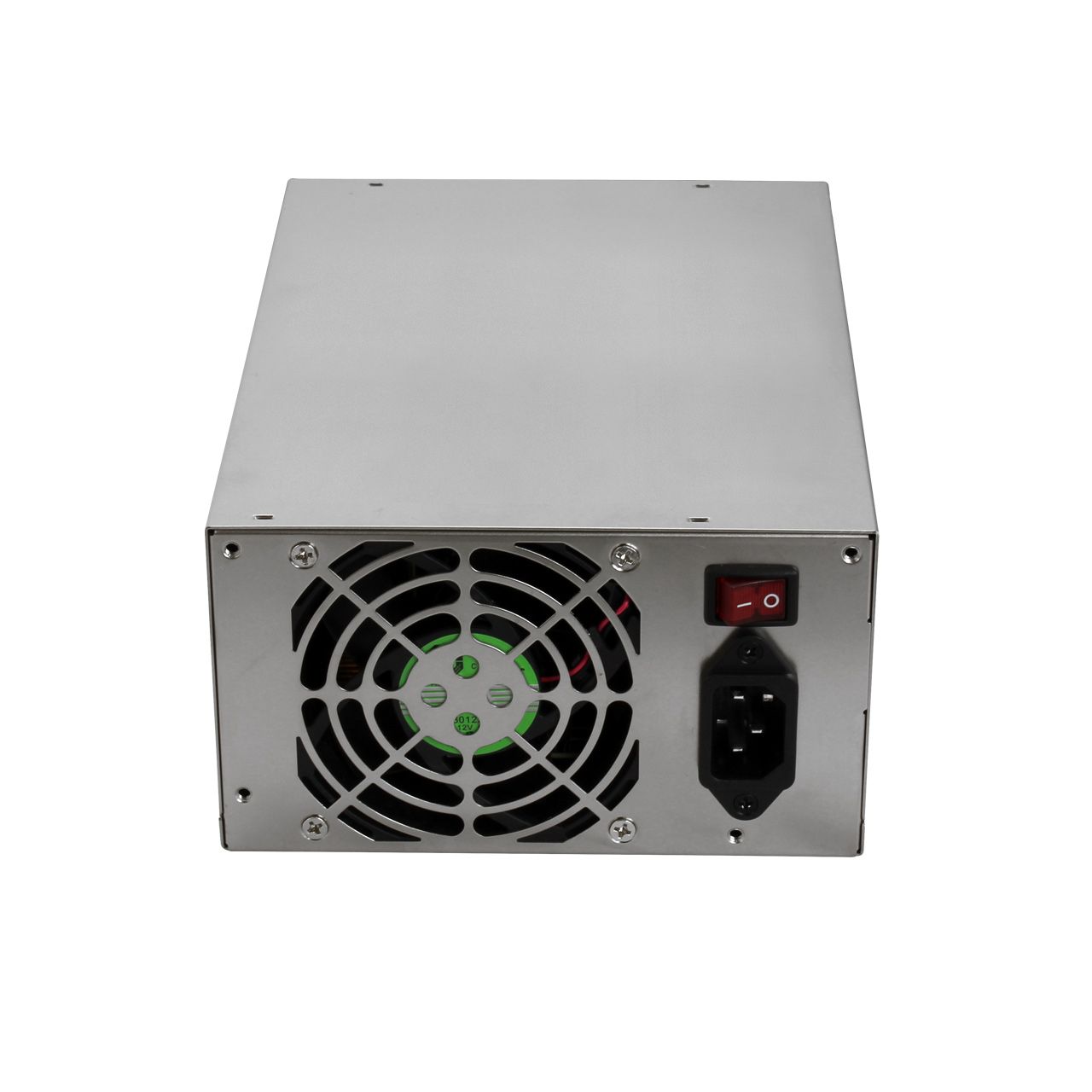

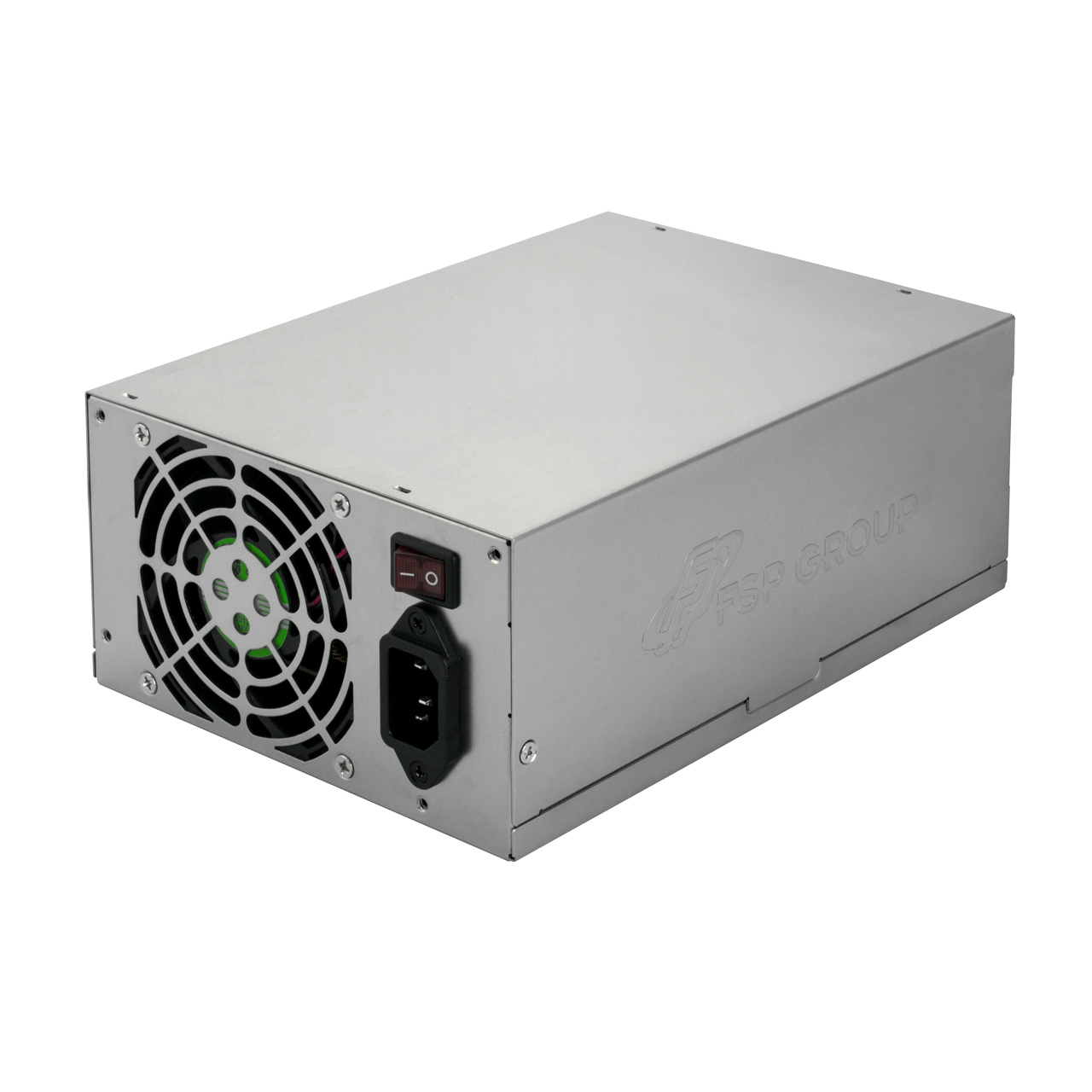

FSP CANNON 1300W PSU
Designed for mining
Industrial-level components
Complies with ATX12 v2.4 & EPS12 v2.92
Efficiency > 88% @ typical Load
+12V Single-Rail Design with D2D 5V&3.3V
2 ball bearing Long Life Fan
Complete Protections: OCP/OVP/OPP/SCP
Specifications:
Model: FSP1300-55YD
Rated Output Power: 1300W
Form Factor: ATX / EPS
Input Voltage: 200-240Vac
Input Current: 8A
Input Frequency: 50-60Hz
PFC: Active PFC > 0.9
Efficiency: 88% @ typical load
Fan Type: ball 80x80x25 mm x2
Dimension (LxWxH): 210 x 150 x 86mm
Operation Temperature: 200,000 Hrs
Protection: OCP/OVP/OPP/SCP
Safety Approval: CB, CCC
Connectors:
ATX 24 PIN x1, 4+4 PIN x1, PCI-E 6+2 x12, SATA x9, Molex x6
