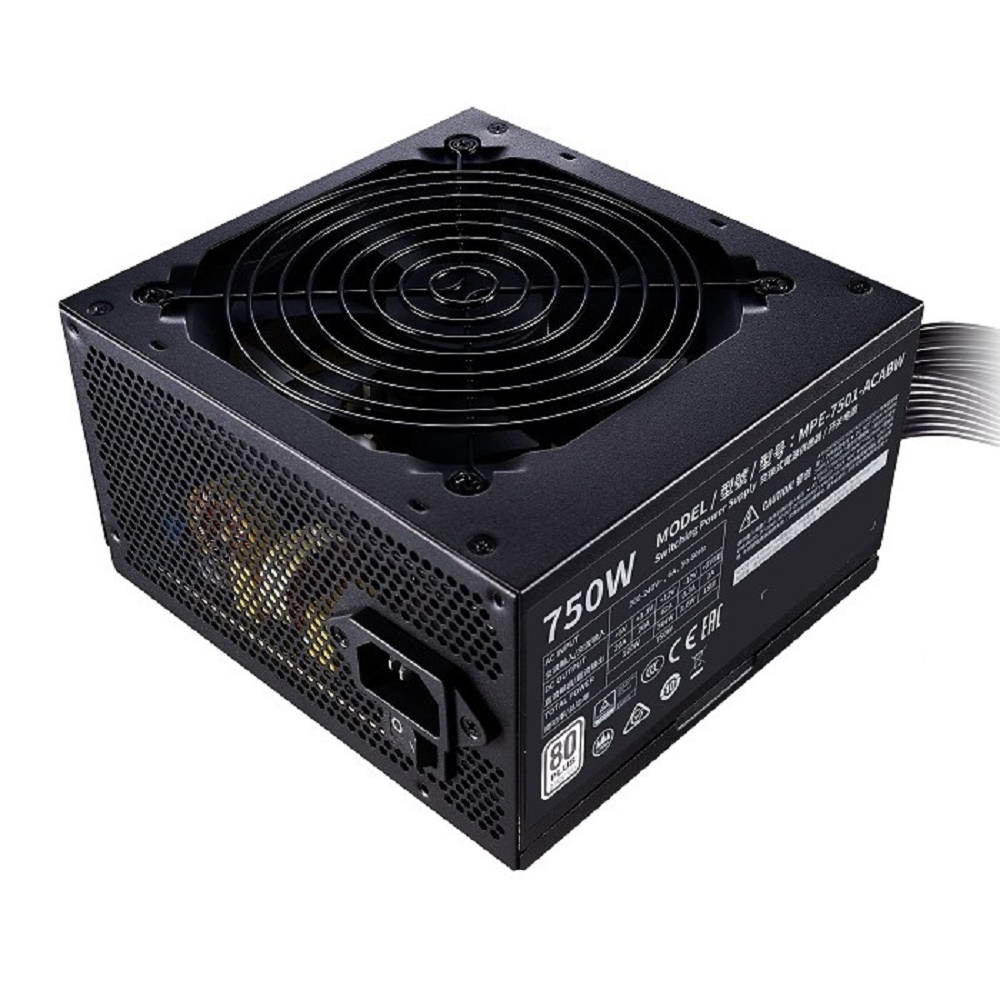

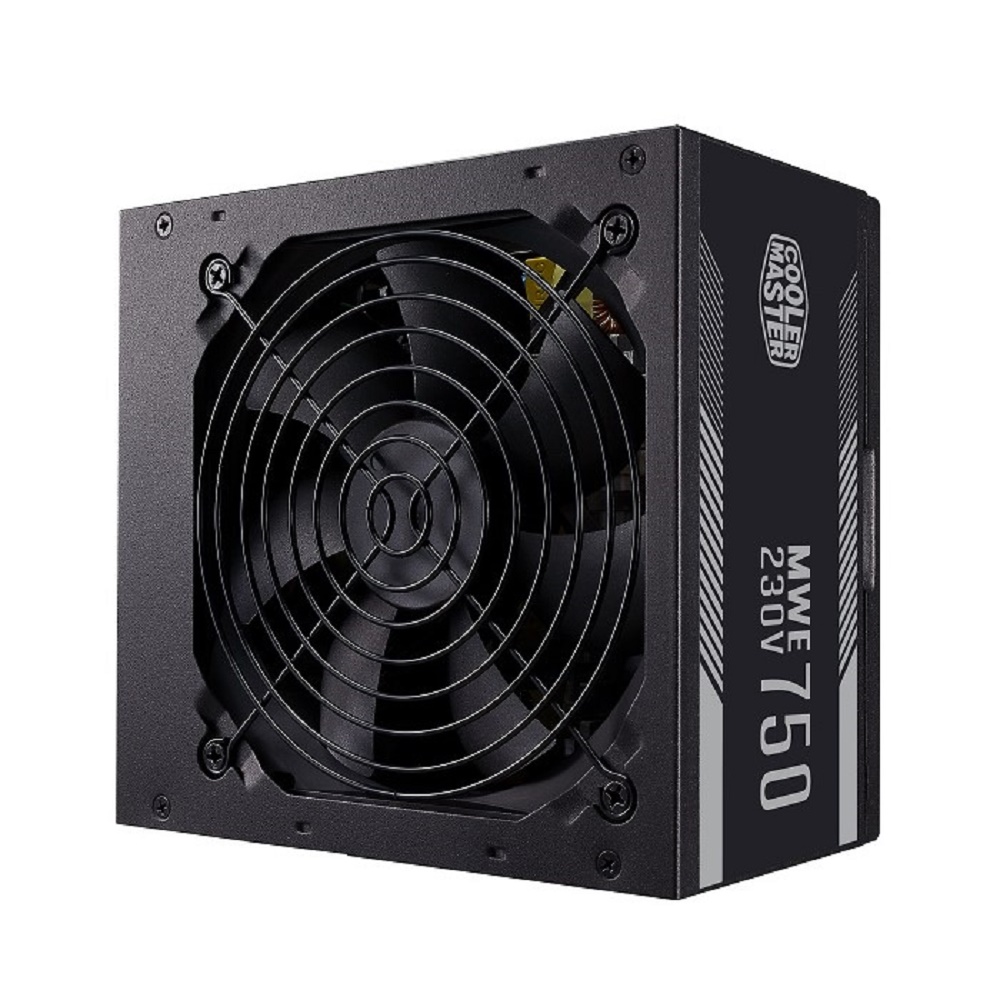

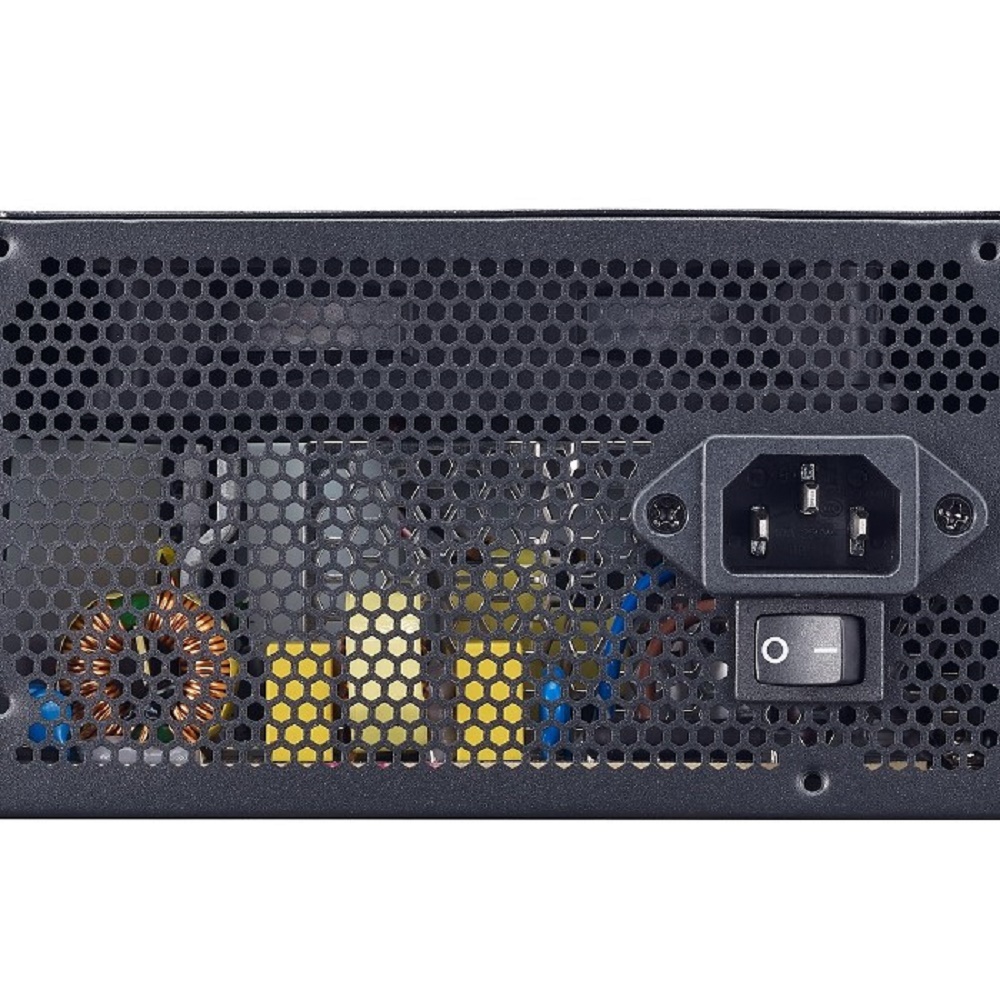

COOLER MASTER - MPE-7501-ACABW



COOLER MASTER MWE 750W 80+ WHT 230V PSU

Description

The MWE White offers 80+ Standard certification, guaranteeing an average efficiency of 85% at typical load. The DC-to-DC + LLC circuit design allows the unit to convert power from the single +12V rail reliably, efficiently.


Specification

COOLER MASTER MWE 750W 80+ WHITE 230V PSU BLACK

Cooler Master MWE White offers 80+ Standard certification, guaranteeing an average efficiency of 85% at typical load. The thermally sensitove HDB fan cools based on temperature, adjusting constantly as the system's needs change.

Features:
-Power comes from a single +12V source, ensuring consistent output through all cables

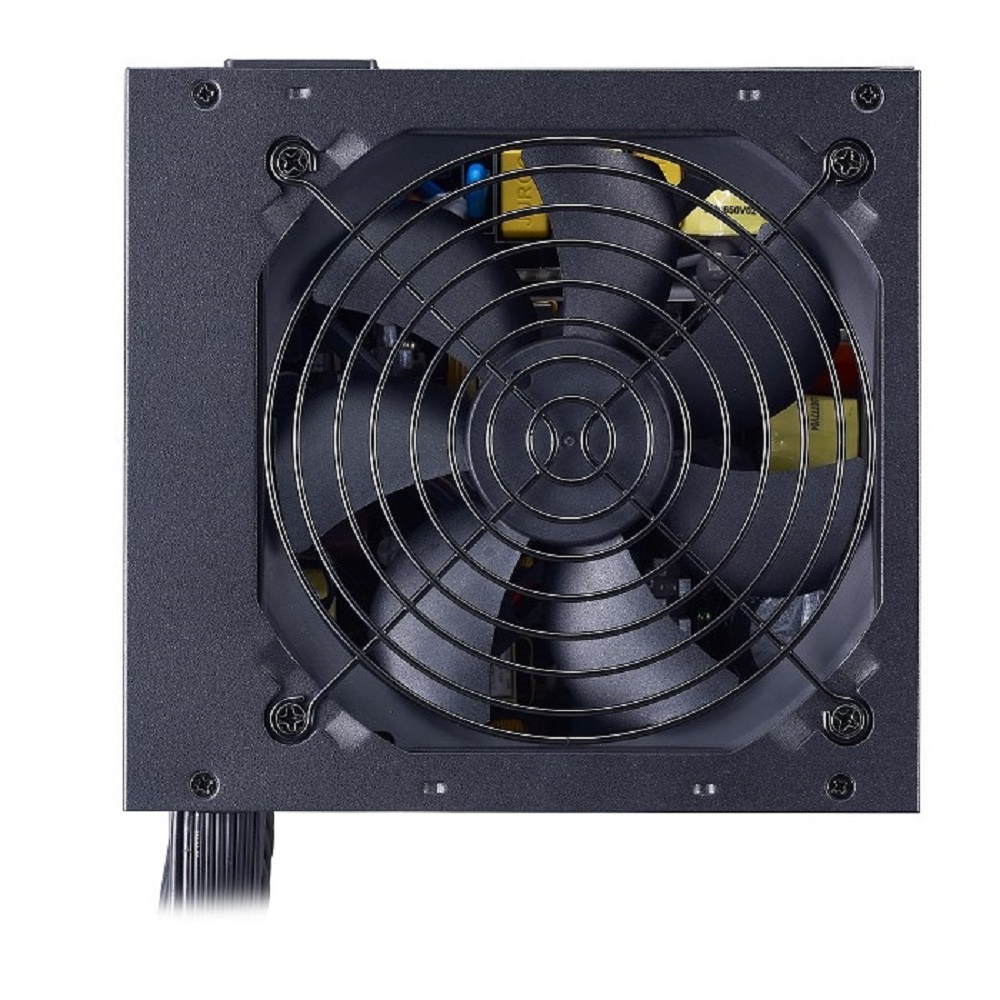

-120mm HDB fan employs responsive fan speed control, limiting noise to specific cooling requirements
-The Dc-to-DC + LLC circuit design offers reliable, stable output to all connected components
-The fan will not spin under lower loads or in standby mode, ensuring a quiet user experience during casual operation
-Flat cables take up less space and are easier to manipulate within the chassis

Specifications:
-Product Name: MWE 750 White 230V V2
-ATX Version: Intel ATX 12V V2.52
-PFC: Active PFC
-Input Voltage: 200-240V
-Input Current: 6A
-Input Frequency: 50-60Hz
-Dimensions (L x W x H): 140 x 150 x 86mm
-Fan Size: 120
-Fan Bearing: HDB
-Fan Speed: 2400 RPM
-Noise @ 20%; 11.12dB-A
-Noise @ 50%: 20.3dB-A
-Noise @ 100%: 39.5dB-A
-Efficiency: 85% Typically
-80 PLUS Rating: 80 PLUS Standard 230V EU
-ErP 2014 Lot 3: Yes
-Operating Temperature: 40°C
-Power Good Signal: 100 -500ms
-Hold Up Time: >14ms at 100% full load@230Vac
-MTBF: >100,000 hours
-Protections: OVP / OPP / SCP / UVP / OTP
-Regulatory: CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB

Connectors:
-ATX 24 Pin x1
-EPS 4+4 Pin x1
-EPS 8 Pin x1
-SATA x6
-Peripheral 4 Pin x3
-PCI-e 6+2 Pin x4
