Specification

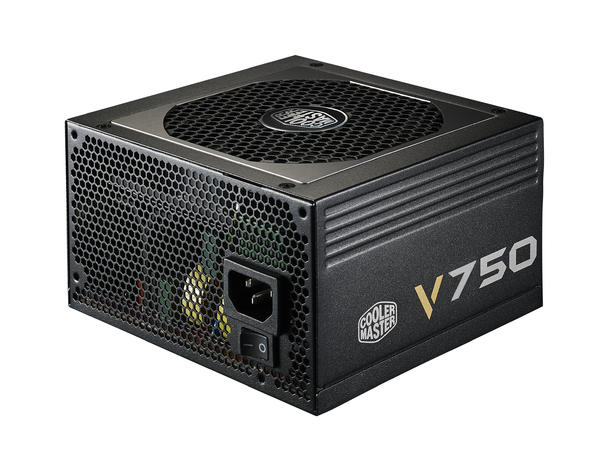

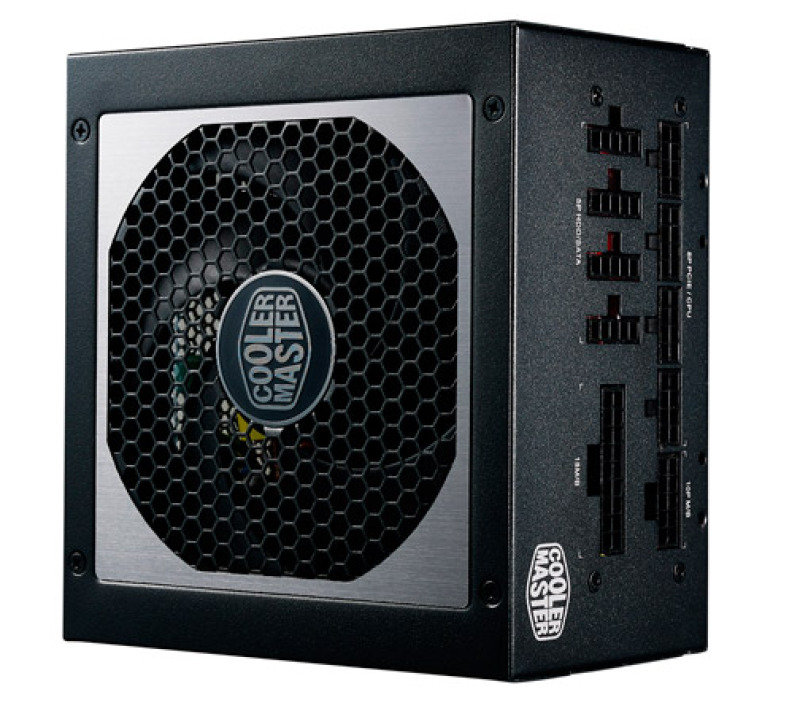

COOLER MASTER VANGUARD 750W PSU
Features:
Unique 3D circuit design offers higher efficiency and improves the heat dissipation
Cooler Master’s exclusive Silencio FP fan technology enhances airflow, reduces vibration and provides the best thermal performance

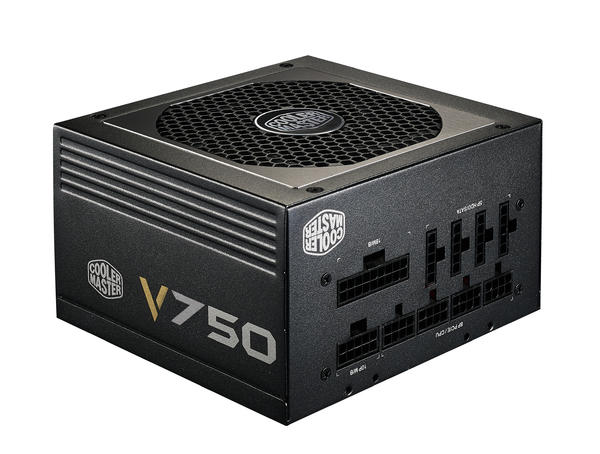

Fully modular, flat cable design for better cable management
100% Japanese capacitors ensures an extended lifetime and minimizes power fluctuations
Compact design 6.8W/inch3 fits perfectly with small form factor systems
80 PLUS Gold certified: up to 92% efficiency on typical load
Specifications:
Model: RS750-AFBAG1-US
Type: Intel Form Factor ATX 12V v2.31
PFC: Active PFC(>0.9 typical)
Input Voltage: 100-240Vac
Input Range: Full Range
Input Current: 10-5A
Input Frequency: 60-50Hz
Dimension: 150 x 140 x 86mm

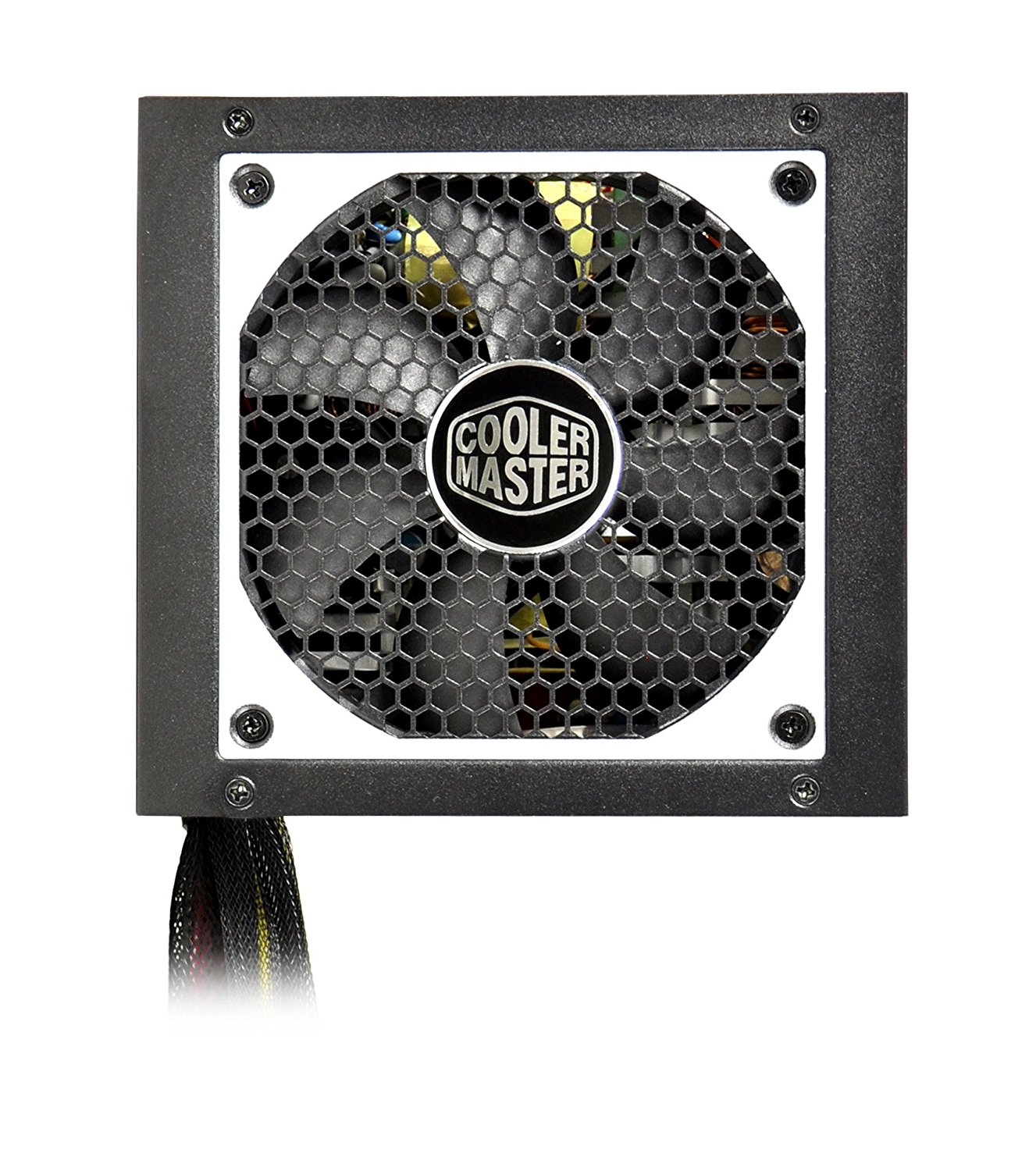

Fan Type: 120mm Cooler Master Silencio FP FAN
Power Good Signal: 100-500ms
Hold up time: >16ms
Efficiency: 90%@Typical Load
MTBF: >100,000 hrs
Protection: OVP/UVP/OPP/OTP/OCP/SCP
Regulatory: CE/FCC/UL/TUV/RCM/EAC/BSMI/CCC/KC
Connectors: MB 24 Pin x 1, CPU 12V 4+4 Pin x 2, PCI-e 6+2 Pin x 4, SATA x 8, 4Pin Peripheral x 6, 4Pin Floppy x 1
