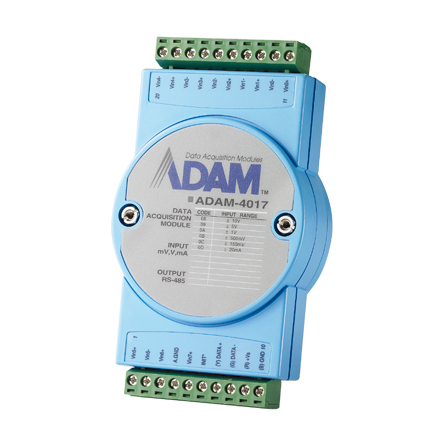

ADVANTECH - ADAM-4017+-CE


ADAM-4017+-CE

Description

The ADAM-4017+ is a 16-bit, 8-channel analog input module that provides programmable input ranges on all channels. These modules are an extremely cost-effective solution for industrial measurement and monitoring applications. 3000 VDC optical isolation between the analog input and the modules protects the modules and peripherals from damages caused by high input voltages.

Specification

ADAM-4017+-CE Specs

Display/LED IndicatorsPower
Power Supply/Power Requirement10~30 VDC
Analog Input/Channels8 differential
Analog Input/Voltage Range±150 mV ±500 mV ±1 V ±5 V ±10 V
Analog Input/Current Input±20 mA, 4~20mA
Analog Input/Channel Independent ConfigurationYes
Analog Input/Sampling Rates10 samples/second
Analog Input/Resolution16-bit
Analog Input/Input ImpedanceVoltage: 20 MOhm Current: 120 Ohm
Analog Input/Span Drift±25 ppm/°C
Analog Input/Zero Drift±6 µV/°C
Analog Input/CMR @ 50/60 Hz120 dB
Analog Input/NMR @ 50/60 Hz100 dB
General/Watchdog TimerSystem (1.6 second) & Communication
General/Connector2 x plug-in terminal block (#14~22 AWG)
General/Temperature (Operating)-10~70 °C (14~158 °F)
General/Humidity5~95 %RH
General/Temperature (Storage)-25~85 °C (-13~185 °F)
General/InterfaceRS-485
General/Isolation Protection3000 VDC
General/Communication ProtocolASCII command & Modbus/RTU
General/Communication SpeedSerial: From 1,200 to 115.2 k
General/Comm. DistanceSerial: 1.2 km
General/Data Flow ControlYes
