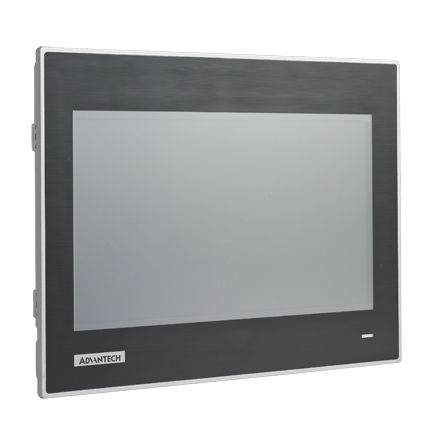

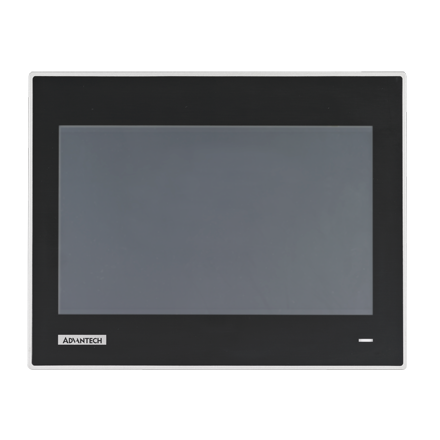

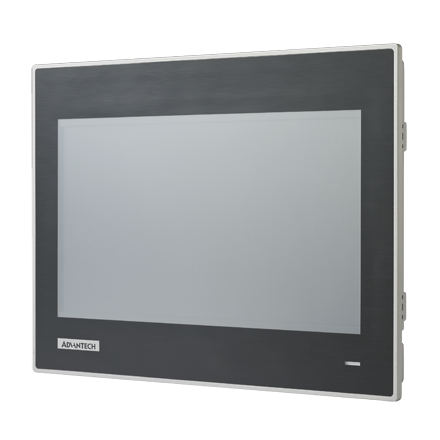

ADVANTECH - WOP-3100T-C4AE



WOP-3100T-C4AE

Description

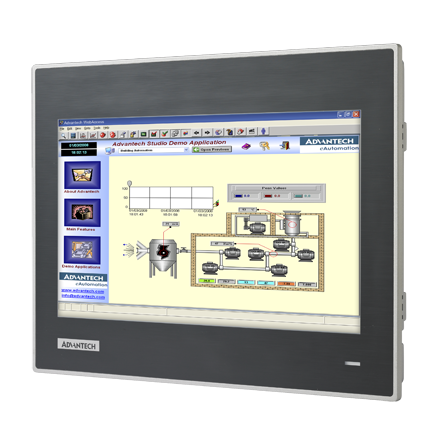

With brand-new ID design, the WebOP-3100T provides stringent standards required in the automation market. Advantech offers the WebOP-3100T with Cortex™-A8 processor which consumes minimum power without sacrificing performance. The WebOP-3100T supports a variety of LCD sizes from 4.3” to 15” for different applications involving the use of PLCs, motion/thermal controllers, inverters and sensors. It’s also provided with a wide operating temperature range to fulfill the requirements of harsh environments. The built-in Microsoft® WinCE 6.0 OS platform which bundles WebOP Designer lets the WebOP-3100T become a control HMI solution for flexible system integration.


Specification

WOP-3100T-C4AE Specs

LCD Display/Viewing Angle (H/V°)140/110
General/CertificationsBSMI, CCC, CE, FCC Class A, UL
General/Dimensions271.5 x 213.5 x 43.2 mm (10.69" x 8.41" x 1.7")
General/Cut-out Dimensions260 x 201.5 mm (10.24" x 7.93")
General/OS SupportMicrosoft® Windows CE 6.0
General/Power Input24VDC ±10%
General/Power Consumption9W (Typical)
General/Enclosure HousingPC + ABS
General/MountingPanel
General/Weight (Net)1.2 kg (2.65 lbs)
System Hardware/CPURISC 32 bits, 600 MHz (ARM® Cortex™-A8)
System Hardware/Battery Backup MemoryFRAM 128KB
System Hardware/Flash MemoryDDR2 256MB on board
System Hardware/Storage512MB on board SLC type
System Hardware/Power-On LEDYes

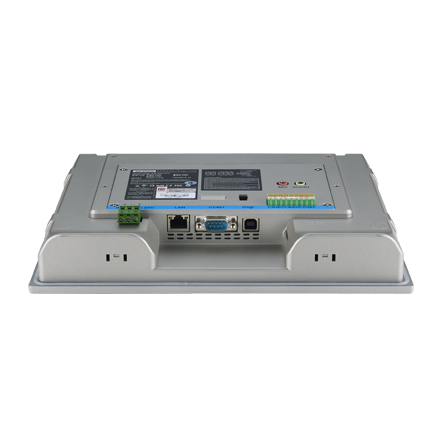

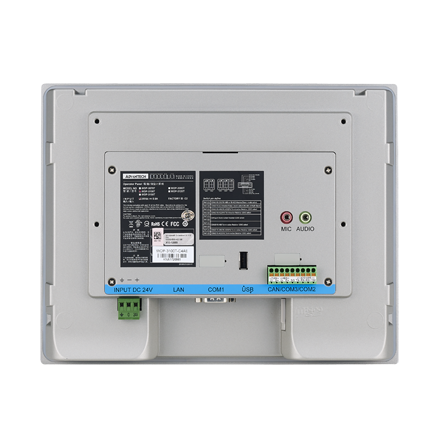

Communications/COM1RS-232/422/485 (DB9 Male)
Communications/COM2RS-422/485 (Terminal Plug 4-Pin)
Communications/COM3RS-485 (Terminal Plug 2-Pin)
Communications/CANTerminal Plug 2-Pin
Communications/Ethernet10/100-BaseT
LCD Display/Display TypeWSVGA TFT LCD
Display/Size10.1"
LCD Display/Max. Resolution1024 x 600
LCD Display/Max. Colors64K
LCD Display/Luminance (cd/m2)550
LCD Display/Backlight LifeLED, 50,000
LCD Display/DimmingAdjustable by touch panel
LCD Display/Contrast Ratio500:1
Touchscreen/Lifespan36 million touches at 8mm-diameter finger poin through silicone rubber bearing at least 250g 2 times per second.
Touchscreen/Light TransmissionTransmission Above 80%
Touchscreen/ResolutionLinearity
Touchscreen/Touch Type5-wire, analog resistive
Environment/Temperature (Operating)-20 ~ 60°C (-4 ~ 140°F)
Environment/Temperature (Storage)-30 ~ 70°C (-22 ~ 158°F)
Environment/Humidity (Operating)10 ~ 90% RH @ 40°C, non-condensing
Environment/Ingress ProtectionFront panel: IP66
Environment/Vibration ProtectionOperating, radom vibration 1 Grms (5 ~ 500 Hz)
