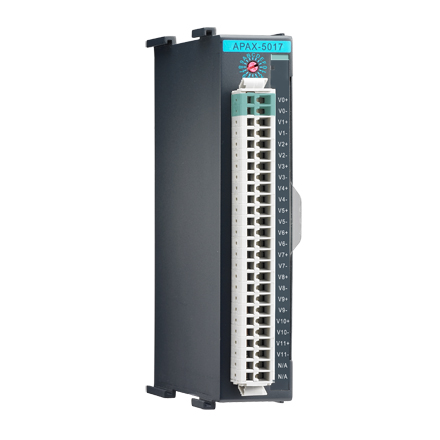

ADVANTECH - APAX-5017-AE


APAX-5017-AE

Description

APAX-5017 modules offer analog input channels for voltage and current signal measurement. Users can configure each channel with different input type and measurement range.

Specification

APAX-5017-AE Specs

Analog Input/Voltage Range±150 mV ±500 mV ±1 V ±5 V ±10 V
Analog Input/Current Input±20 mA 0 ~ 20mA 4 ~ 20mA
Analog Input/Sampling Rates12 sample/second (total)
Analog Input/Resolution16-bit with accurancy ±0.1% or better of Full Scale Range (Voltage), ±0.2% or better of Full Scale Range (Current)
Analog Input/Channels12 (Differential)
Analog Input/Input TypeV, mV, mA
General/Description12-ch AI Modules
Analog Input/Input Impedance> 10 MO (Voltage), 120 O (Current)
Analog Input/Wire Burn-out Det.Yes (4~20 mA only)
Analog Input/Common Mode200 VDC
General/Power Consumption4 W @ 24 VDC (typical)
General/CertificationsCE, FCC class A
General/Weight170 g
General/Enclosure HousingABS+PC
General/Dimensions30 x 139 x 100 mm
Environment/Temperature (Operating)-10 ~ 60°C (when mounted vertically)
Environment/Temperature (Storage)-40 ~ 70°C
Environment/Relative Humidity5 ~ 95% (non-condensing)
