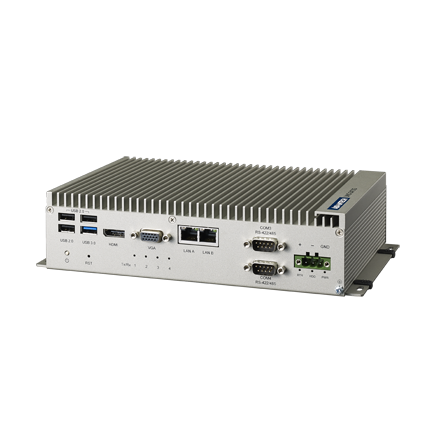

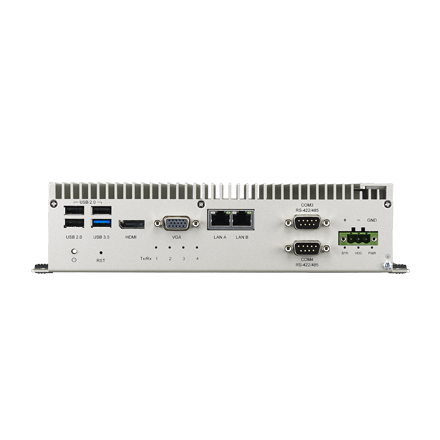

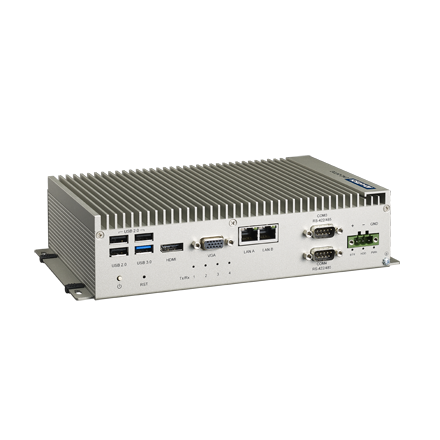

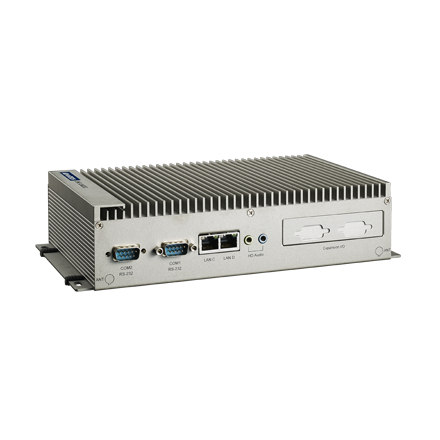

ADVANTECH - UNO-2473G-J3AE



ADVANTECH J1900 2.0GHZ 4GB W/4*COM, 2*LA

Description

ADVANTECH UNO-2473G-J3AE J1900 2.0GHZ 4GB W/4*COM, 2*LAN, 3*M PCIE, 4th Generation Intel/Atom J1900 Processor up to 1.91/2.42GHz with 4GB DDR3L Memory, 4/2 GbE/3*USB2.0/1*USB3.0/4*USB2.0/1*USB3.0/2*RS-232/2*RS-422/485/1*VGA/1*HDMI/Audio.


Specification

ADVANTECH UNO-2473G-J3AE

4th Generation Intel® Atom/Celeron J1900 Processor up to 1.91/2.42 GHz with 4GB DDR3L Memory
4/2 x GbE, 3 x USB 2.0 and 1 x USB 3.0/4 x USB 2.0 and 1 x USB 3.0, 2 x RS-232, 2 x RS-422/485 (E3AE), 2 x RS-232/422/485 (J3AE), 1 x VGA, 1 x HDMI, Audio
Comprehensive Palm, Small, Regular-size form-factor
Compact with Fanless Design
Rubber Stopper Design with Captive Screw
Diverse system IO and Isolated Digital IO by iDoor Technology
3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology
Supports MRAM by iDoor Technology
Chassis Grounding Protection
LAN Redundancy (Teaming)
Fault-Protected RS-485 Transceivers With Extended Common-Mode Range

Specifications:
Power Consumption: 28W (Typical), 48W (Max)
Mounting: Stand/ Wall/ VESA (Optional)/ Din-rail (Optional)
Enclosure: Aluminum Housing
OS support: Microsoft Windows 7 / 8
Power Requirement: 24VDC ┬▒ 20%
Form Factor: Regular Size
Dimensions (W x D x H): 252 x 149 x 62mm

System Hardware:
Memory: On-board 4GB DDR3L 1600 MHz
Storage: One mSATA/ one drive bay for SATA 2.5" HDD (compatible with 9.5mm height HDD)/ CFast drive by iDoor Technology (optional)
Expansion: 3 x Full-size mPCIe slot, mPCIe 2.0
Processor: Intel Atom Processor E3845 1.91GHz Quad Core, 2MB L2
System Chip: Intel Atom SoC integrated
Graphics Engine: Intel HD Graphics
Ethernet: LEDs for power/ battery/ LAN (Active/ Status), Tx/Rx
LED Indicators: LEDs for Power/ battery/ LAN (Active/ Status), Tx/Rx and HDD

I/O Interface:
Serial Ports:
2 x RS-232
DB9
50~115.2kbps
2 x RS-422/485
DB9
Auto flow control
50~115.2kbps

LAN: 4 x USB Ports (3 x USB2.0/ 1 x USB3.0 compliant)
Displays: 1 x VGA (2560x1600)/ 1 x HDMI (1920x1200)
Power Connector: 1 x 3 Pins/ Terminal Block
